Tilta Khronos Universal Smartphone Case Ultimate Kit Space Gray

Key Features

• Universal Compatibility: Fits mainstream smartphones from major brands with a 2.75 to 3.5 inch (70-90mm) clamping range.
• Integrated USB-C Hub: Delivers 10Gbps data speeds, HDMI monitoring output, and dual USB-C ports for SSD storage and ProRes RAW recording.
• Adjustable NATO Handles: Dual handles featuring 360-degree rotation and flexible offset adjustments for horizontal, vertical, high, and low-angle shooting.
• Active Cooling System: Limits overheating during extended recording, dropping surface temperatures in as little as 40 seconds.
• Dual Filter Adapters: Includes a 58mm magnetic filter tray holder with a 1-5 stop VND filter, plus a 62mm threaded filter tray for broad third-party compatibility.

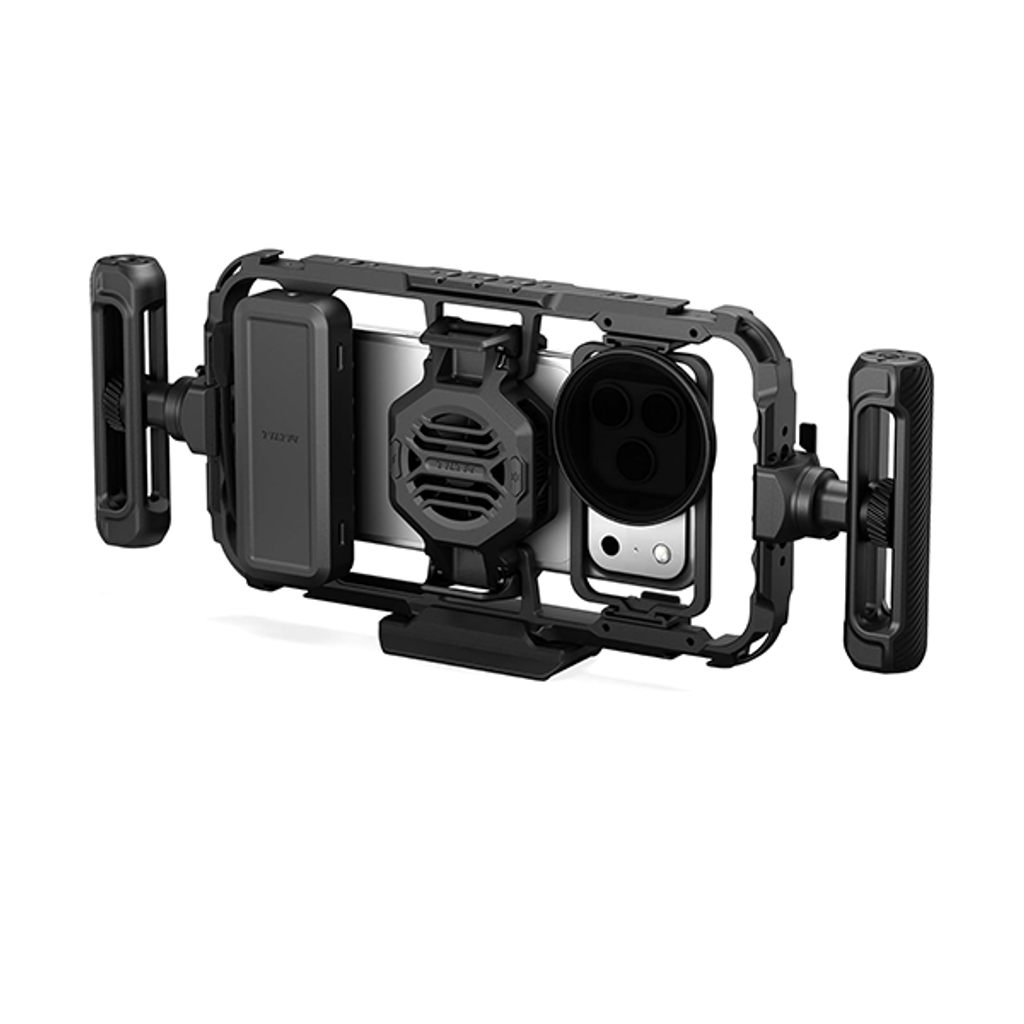

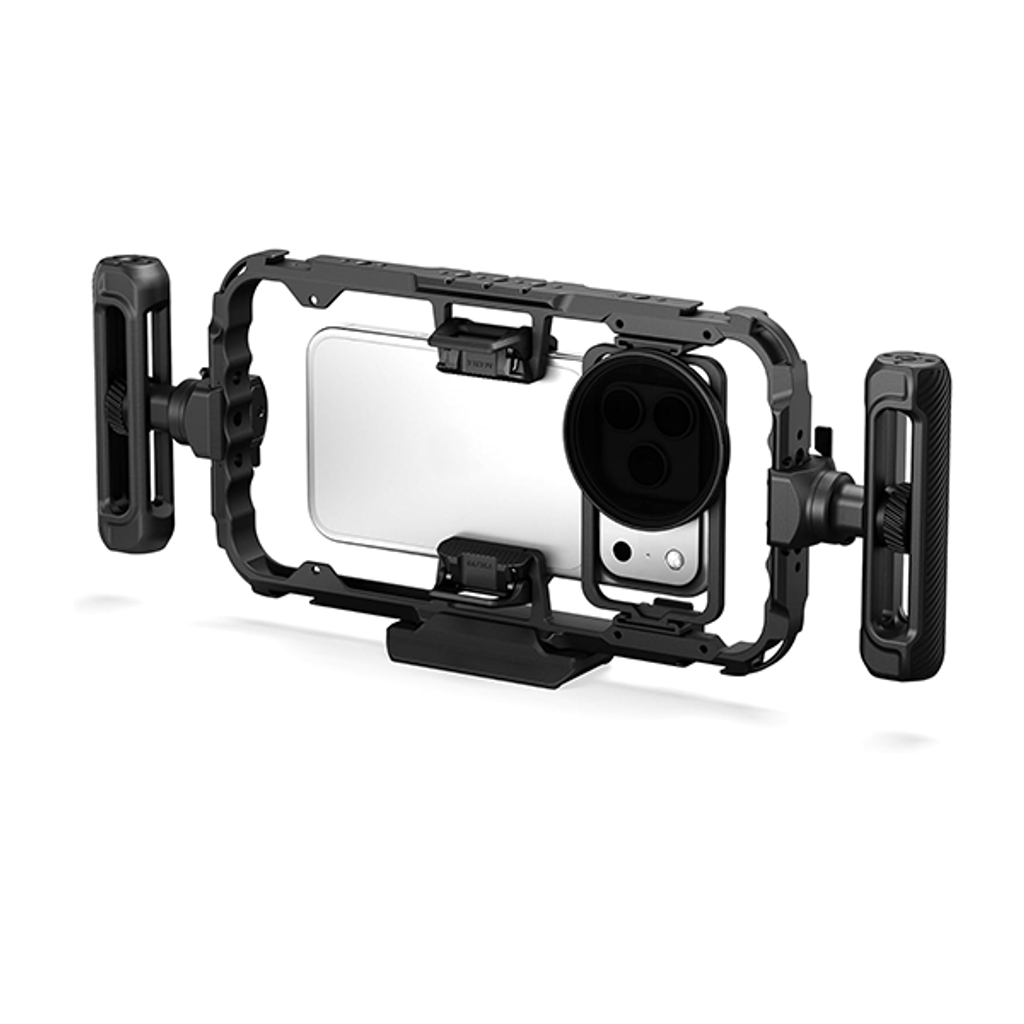

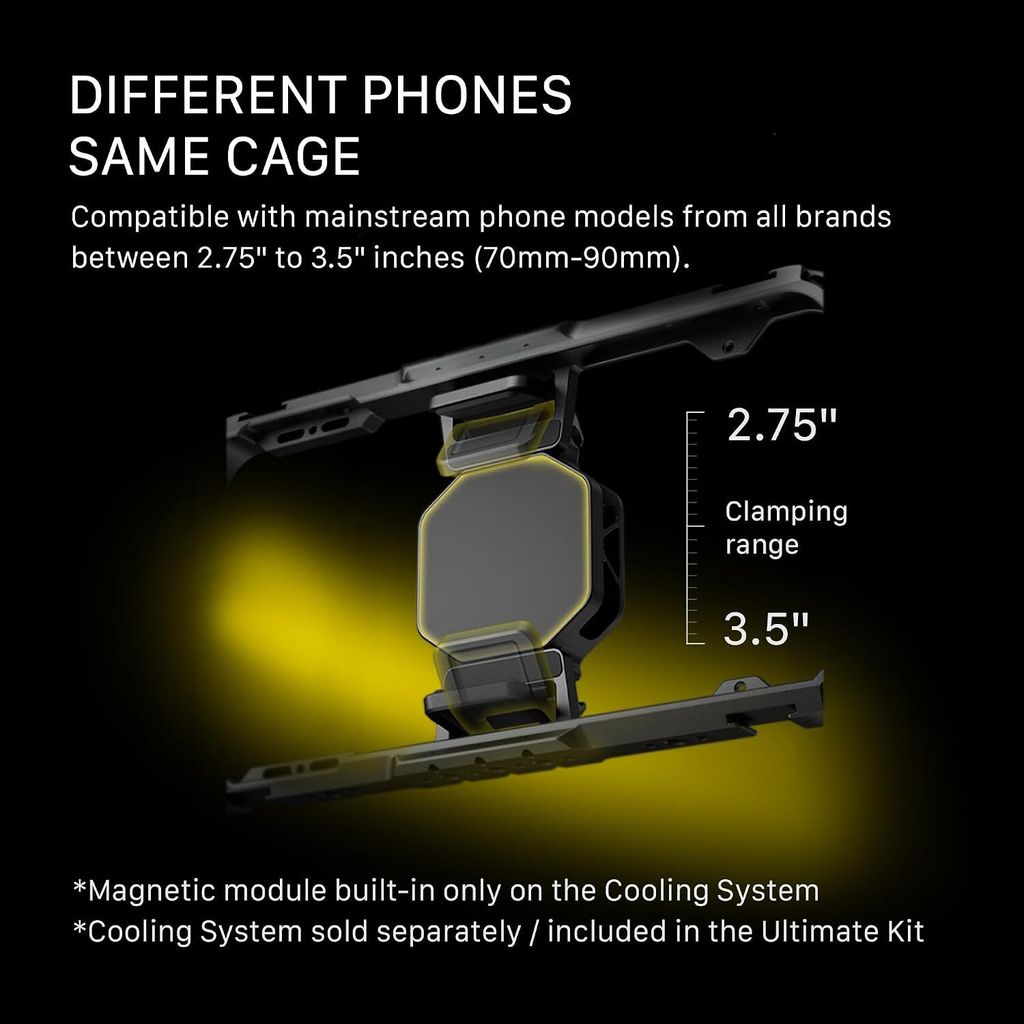

Designed to fit the majority of mainstream smartphones, this camera cage-inspired case offers universal compatibility, modular expandability, and professional-grade build quality. With an adjustable clamping range of 2.75 to 3.5 inches (70-90mm), the Khronos Universal Case adapts to almost any device—ensuring your rig remains fully functional even when you upgrade your phone.

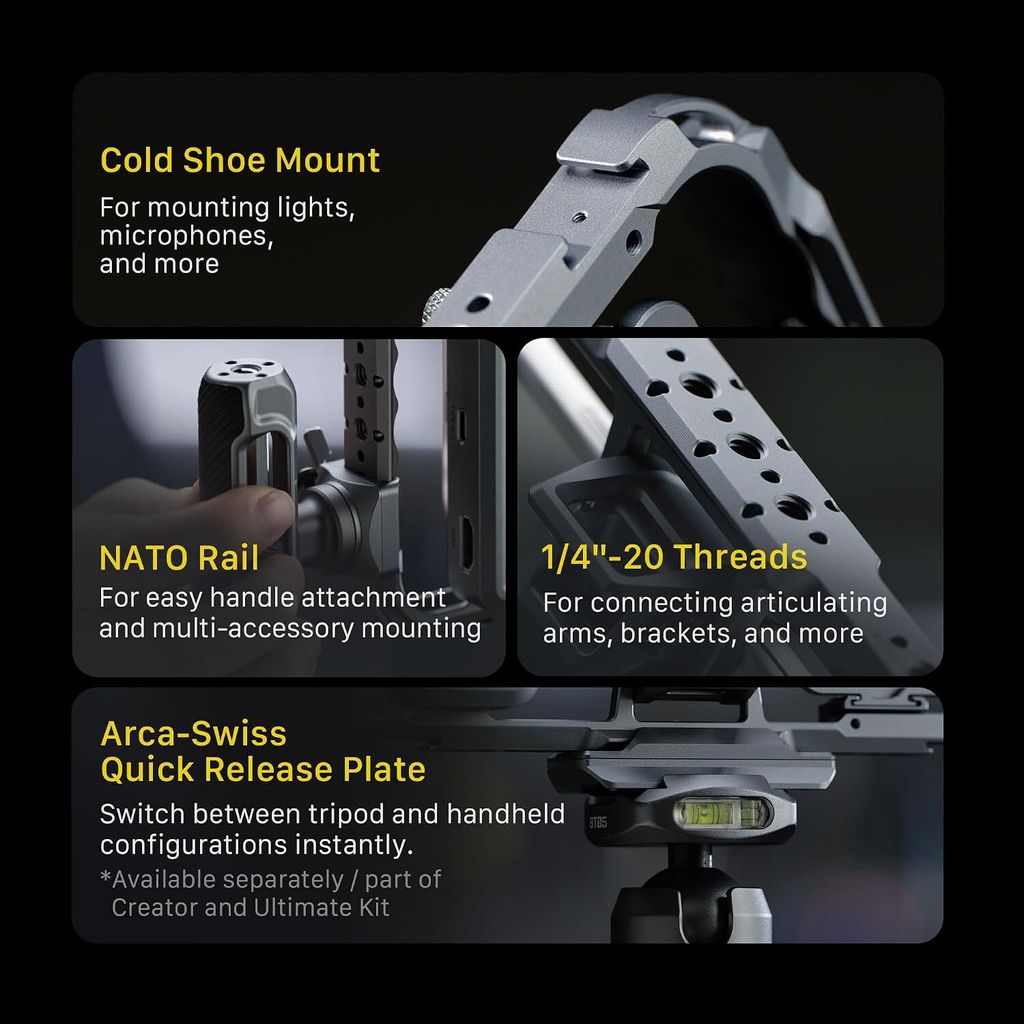

Built around a modular ecosystem, the case features an integrated cold shoe mount, NATO rails, and multiple 1/4"-20 threads to mount lights, microphones, and articulating arms. Dual wave-shaped grip grooves along the frame provide a secure, ergonomic hold during handheld operation.

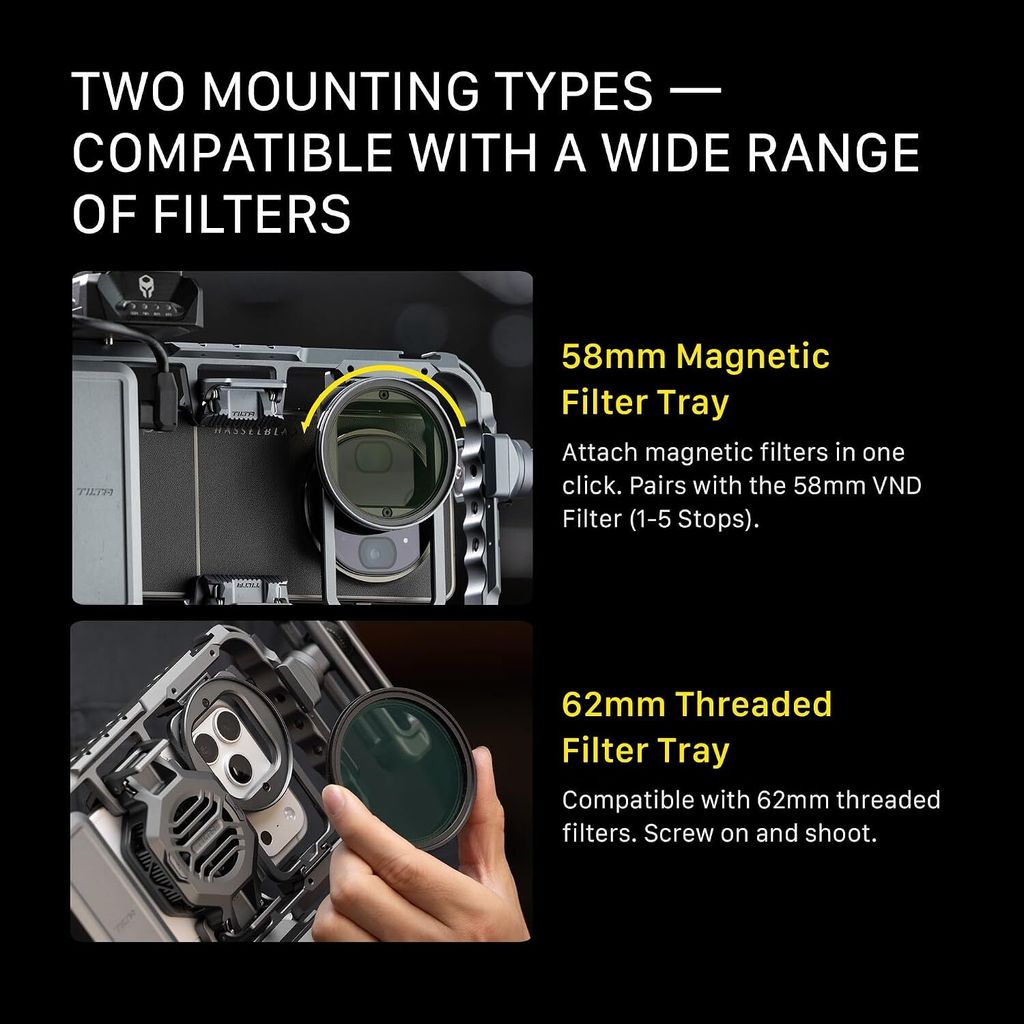

For precise exposure control, the kit offers two filtration mounting systems:

Magnetic 58mm Filter Tray Holder: Features a quick-snap magnetic design paired with an included 58mm Variable ND Filter (1-5 Stops).

62mm Threaded Filter Tray: Accepts standard 62mm screw-on filters, allowing instant integration with third-party camera optics.

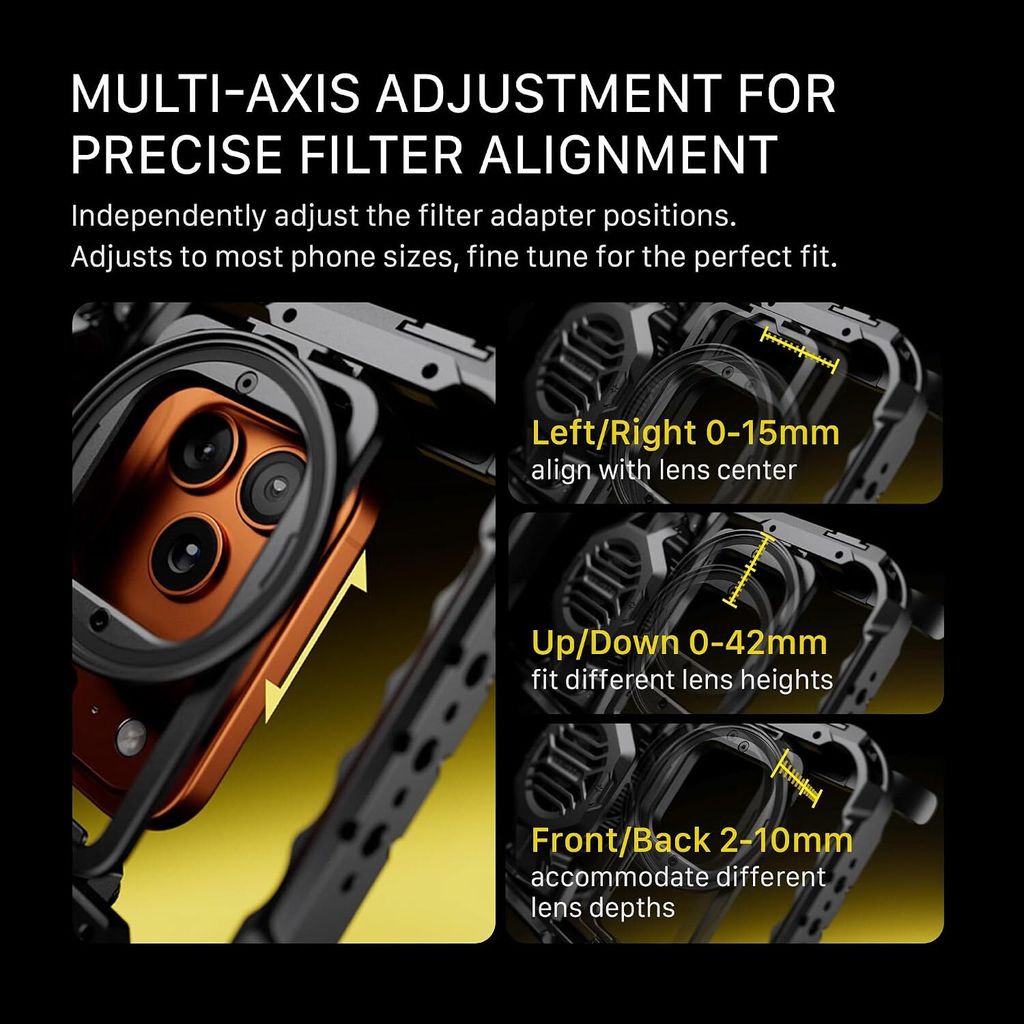

To ensure optimal alignment across varied camera bumps, the filter tray holder adjusts along three axes:

Horizontal (Left/Right): 0 to 15mm for lens centering.

Vertical (Up/Down): 0 to 42mm for lens height.

Depth (Front/Back): 2 to 10mm to clear rear lens protrusions.

The included NATO to ARCA Adapter mounts directly to the frame's NATO rails, permitting quick transitions to ARCA-compatible tripods, gimbals, and support rigs.

The dual Adjustable NATO Handles slide onto the rail with a one-touch locking mechanism. Each handle offers 360-degree rotation via a quick-release button, and the distance from the center can be adjusted via a central locking knob to balance standard or inverted angles.

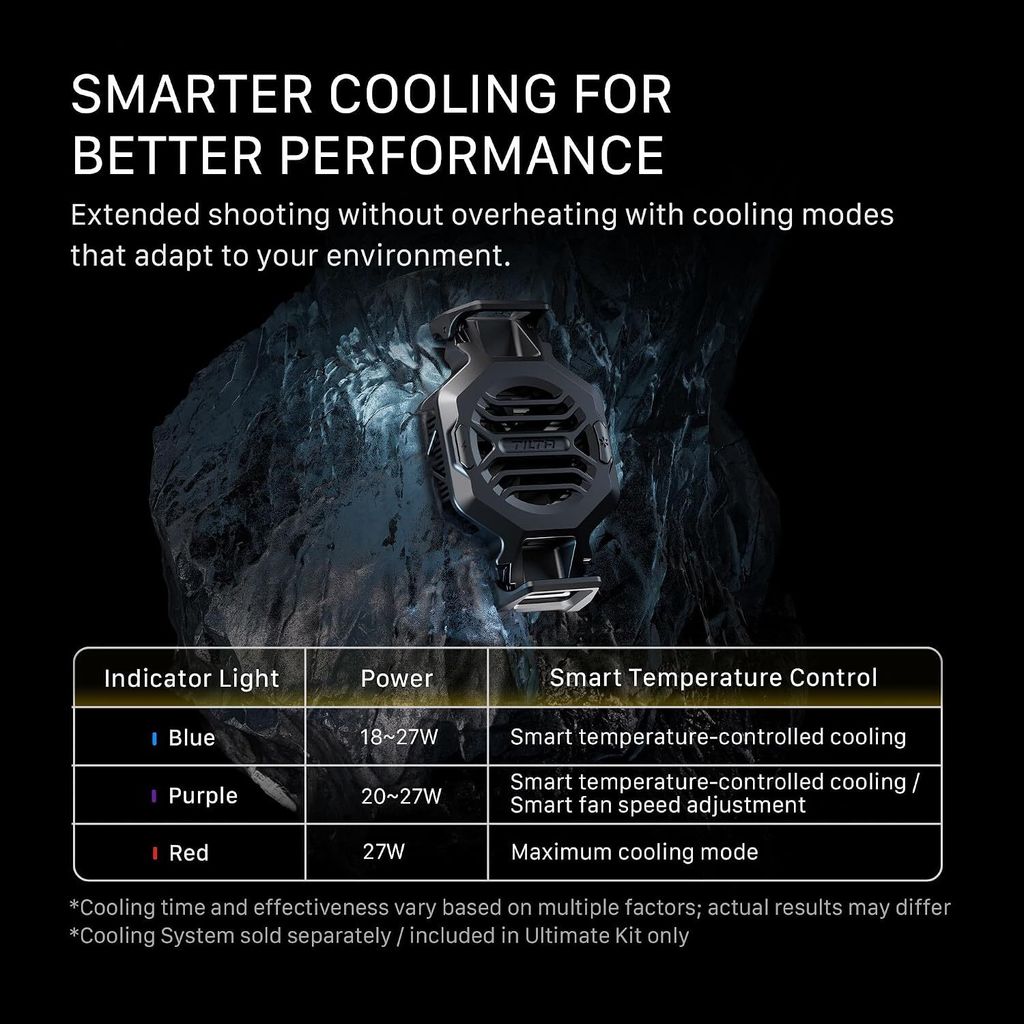

The Ultimate Kit includes the dedicated Cooling System, which utilizes a high-performance fan and smart temperature regulation to prevent thermal throttling. It operates across three distinct power modes:

Blue Mode: 18-27W Smart Cooling.

Purple Mode: 20-27W Smart Cooling with manual fan speed adjustments.

Red Mode: 27W Extreme Cooling output (achieves rapid cooling in as little as 40 seconds).

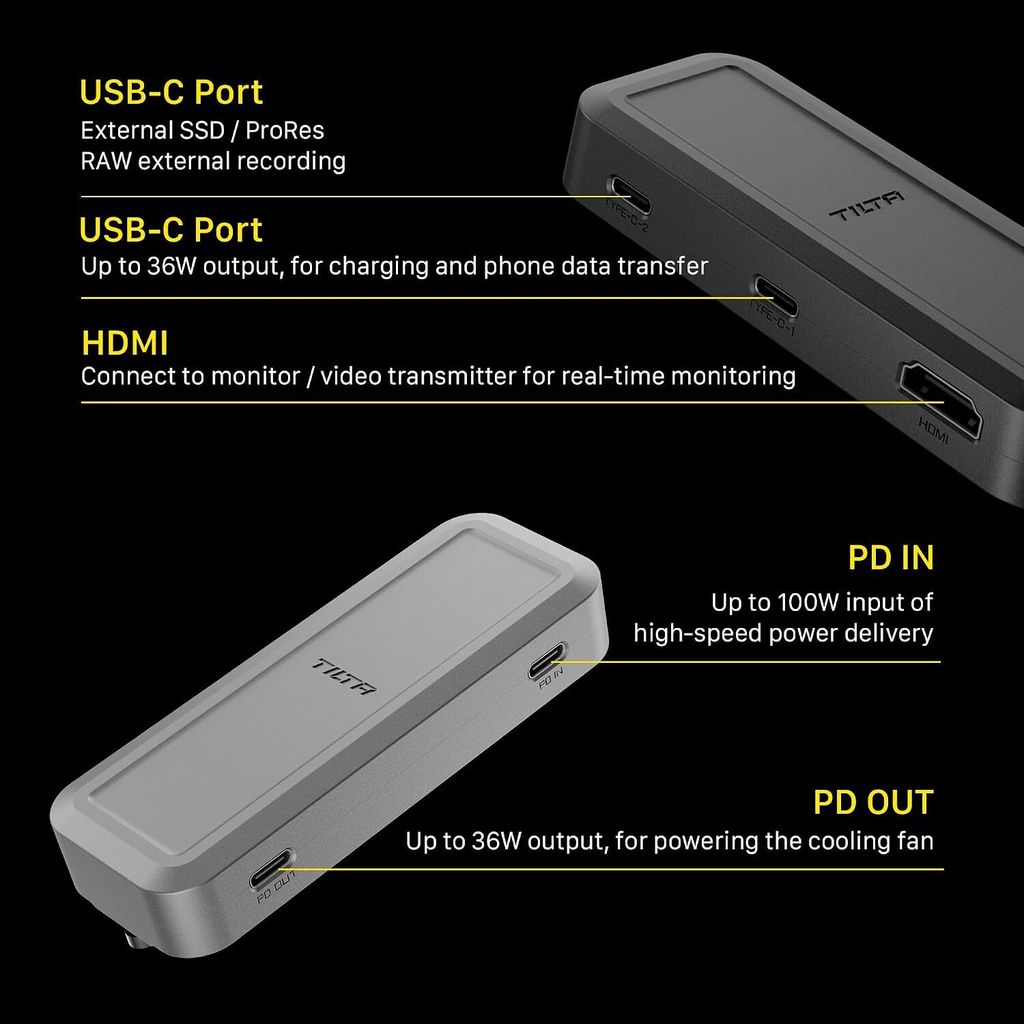

The USB-C Hub connects directly to the device to handle high-demand workflows. It supports up to 100W Power Delivery input, passes through up to 36W to power the phone, provides 10Gbps transfer speeds for external SSDs (including direct ProRes RAW recording), and includes an HDMI port for real-time external display monitoring.

Note: The active Cooling System is exclusive to this Ultimate Kit edition and must be purchased separately if using the Base or Creator Kits.

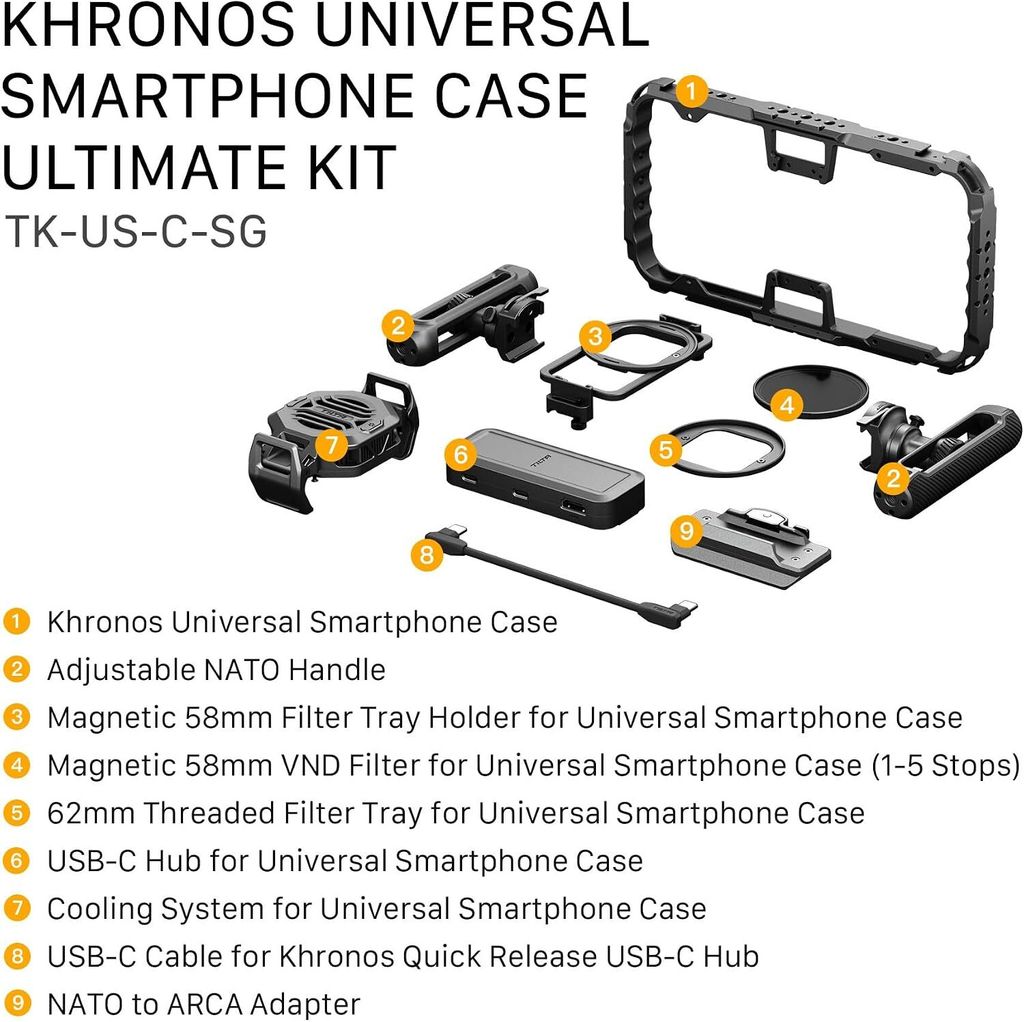

In The Box

• Khronos Universal Smartphone Case with Cooling System (Space Gray) x1
• Khronos Magnetic 58mm Filter Tray Holder (Space Gray) x1
• Khronos Magnetic 58mm VND Filter, 1-5 Stops (Space Gray) x1
• Khronos Adjustable NATO Handle (Space Gray) x2
• Khronos USB-C Hub for Universal Case (Space Gray) x1
• Khronos 62mm Threaded Filter Tray (Space Gray) x1
• Tilta NATO to ARCA Adapter (Space Gray) x1
• T6 Allen Key x1
• 2.5mm Allen Key x1
• USB-C Cable for Quick Release USB-C Hub x1
• Organizer Insert for Khronos Universal Carrying Case (Black) x1
