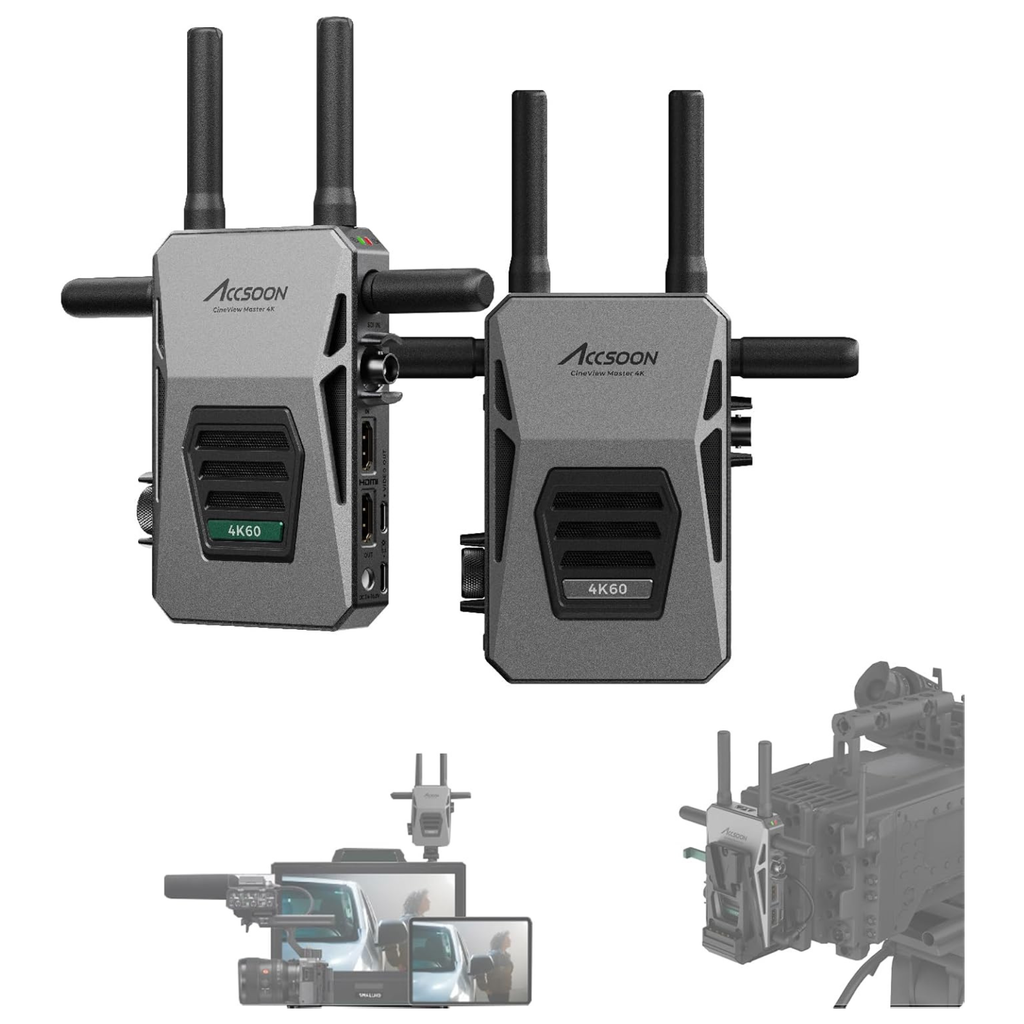

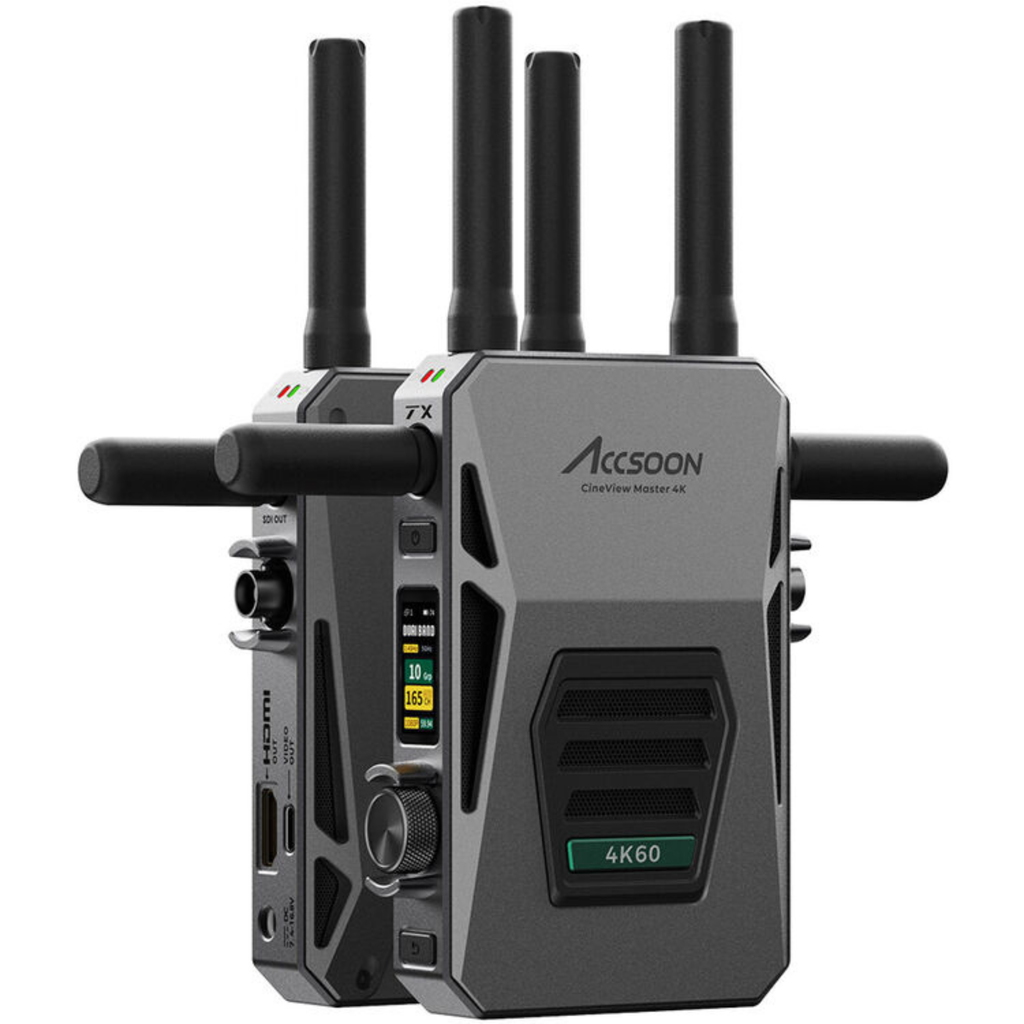

Accsoon CineView Master 4K Lite Wireless Video Transmission System

Key Features

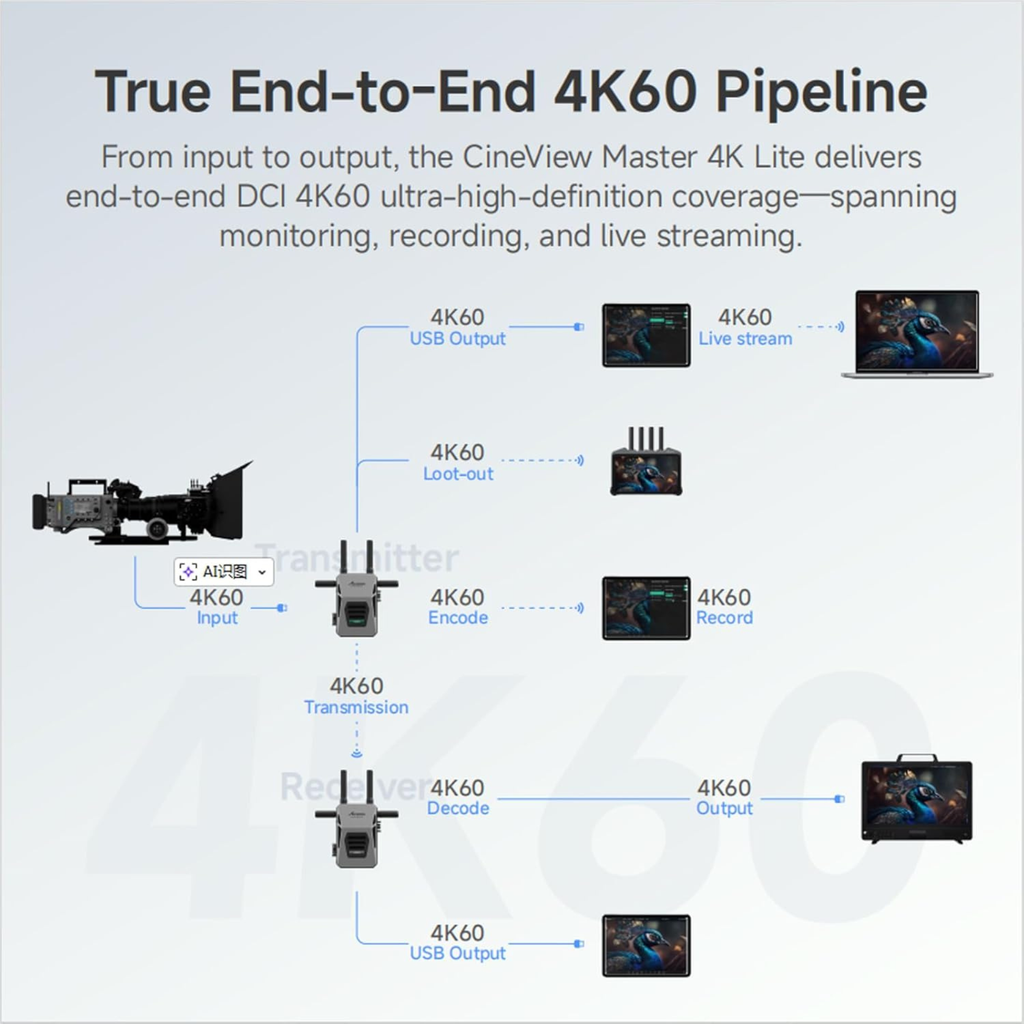

• True End-to-End 4K60 Pipeline: Supports flawless, high-fidelity video transmission up to 4K UHD at 60fps via HDMI, employing advanced H.265 encoding.
• Next-Gen Dual-Band + DFS: Powered by the new RTMS 4.0 proprietary protocol, intelligently shifting data across 2.4GHz and 5GHz bands to avoid interference on busy sets.
• 1200ft Transmission Reach: Provides a reliable line-of-sight wireless operational range of up to 350 meters (1200 ft) with up to 10 coexisting groups.
• Ultra-Low Latency Monitoring: Delivers response speeds under 35ms for 1080p60 signals and under 65ms–100ms for heavy 4K60 transmission pipelines.
• 1 Wired + 4 Wireless Streams: Distributes signals to up to 5 devices simultaneously, sending wireless video to 4 receivers/tablets while hosting 1 physical zero-latency connection.
• USB Wired Video Out & Charge: Features USB-C video output on both TX and RX. Monitor directly on iOS/Android via the Accsoon SEE App while outputting 5V/2.4A pass-through power to keep devices charged.
• Wired USB Camera Control: Allows operators to adjust vital settings like shutter angle, aperture, sensitivity, and white balance directly through the transmitter's data port.
• Frame.io Camera-to-Cloud (C2C): Seamlessly integrates with cloud-based post-production software, allowing auto-uploading of video assets straight from the set to Frame.io.
• Comprehensive CineView Coexistence: Shares total cross-compatibility with the CineView M7 Pro monitor series, standard Master 4K, and SE 4K ecosystems.

The Accsoon CineView Master 4K Lite is a mid-range workhorse that brings elite-tier 4K60 wireless video transmission to small-to-medium film crews and live broadcast operators. Acting as a strategic evolution from previous generations, it drops the highly complex tri-band configuration to focus on maximum day-to-day usability, including wired app monitoring with bi-directional device charging and onboard camera parameter adjustments. Armed with the production-proven RTMS 4.0 dual-band protocol and direct Frame.io cloud backup support, it eliminates workflow bottlenecks and serves as a highly flexible mobile hub for cinematic asset management.

In the Box

• 1 x CineView Master 4K Lite Transmitter (TX)
• 1 x CineView Master 4K Lite Receiver (RX)
• 2 x Cold Shoe Mount Adapters
• 4 x Swappable Paddle Antennas
• 1 x USB-C to USB-C Control Cable
• 1 x User Manual
