CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display

Key Features

• Four HDMI Inputs, Two HDMI Outputs

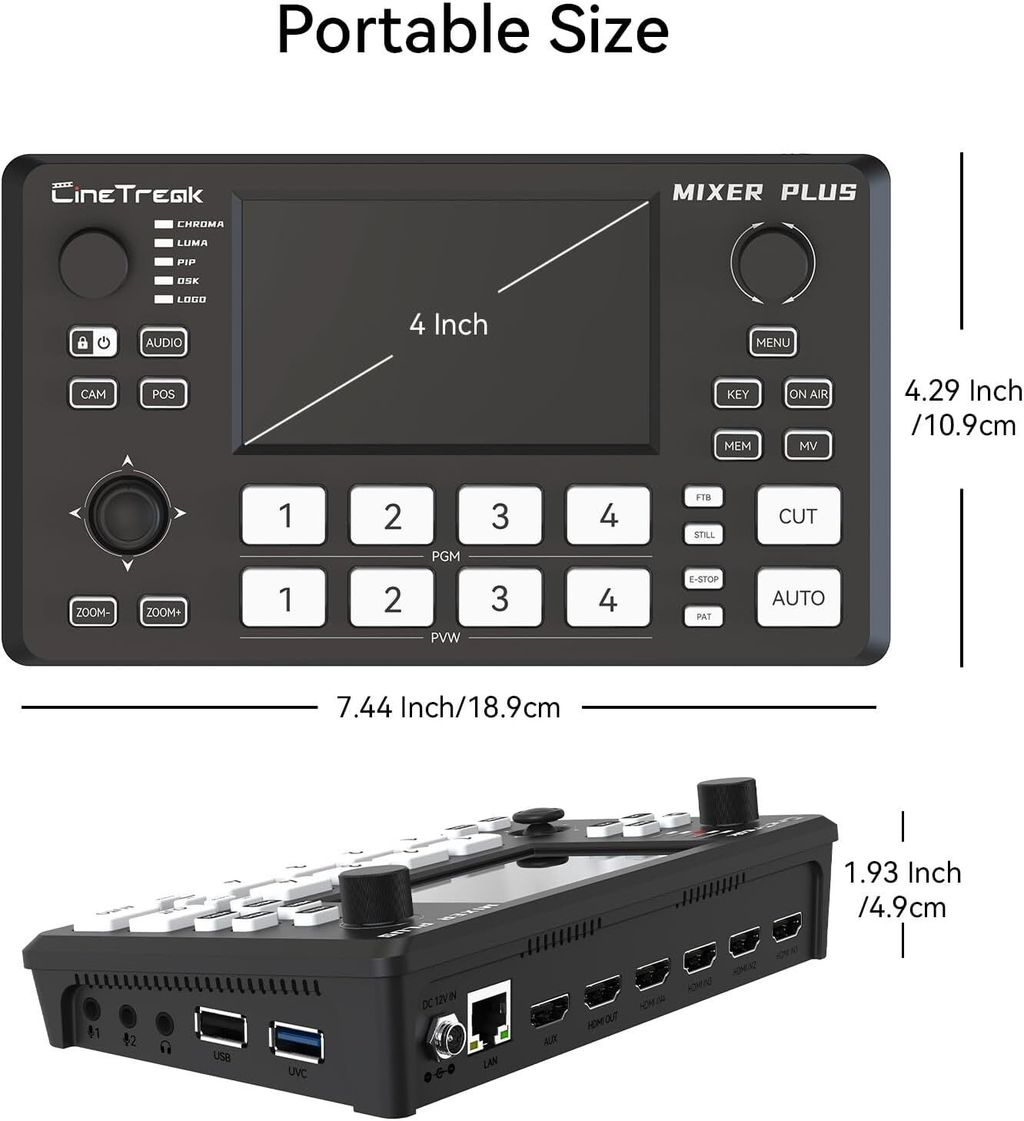

• Built-In 4.5" HD Display
• Live Stream via USB-A UVC 3.0
• VISCA Control for up to Four PTZ Cameras
• Supports up to 1080p60 Video
• Multiview Monitoring
• Luma, Chroma-Key, Logo, PiP, and PoP
• USB-A 2.0 Media Input, Upgrades
• Two 3.5mm Mic/Line Audio Inputs
• 3.5mm Headphone Output

The Mixer Plus 4-Channel HDMI Streaming Video Switcher from CineTreak provides powerful mixing and live streaming for up to 1080p60 video and embedded audio. This compact switcher provides four HDMI inputs, two HDMI outputs, one LAN port, one USB-A UVC 3.0 output, two 3.5mm audio inputs, and a 3.5mm headphone output. It features a 4.5" LCD screen with multiview, luma and chroma-keying, transition effects, and VISCA control for up to four PTZ cameras.

Applications

This 4-channel HDMI switcher is ideal for content creators, educators, houses of worship, and live event streamers.

4-Channel Video Switcher

Input video via four HDMI ports and output via one HDMI program and one auxiliary output, one UVC output, and one RJ45 LAN port.

Luma and chroma-keys, PiP (picture in picture), PoP (pop-out picture), logo, and transition effects.

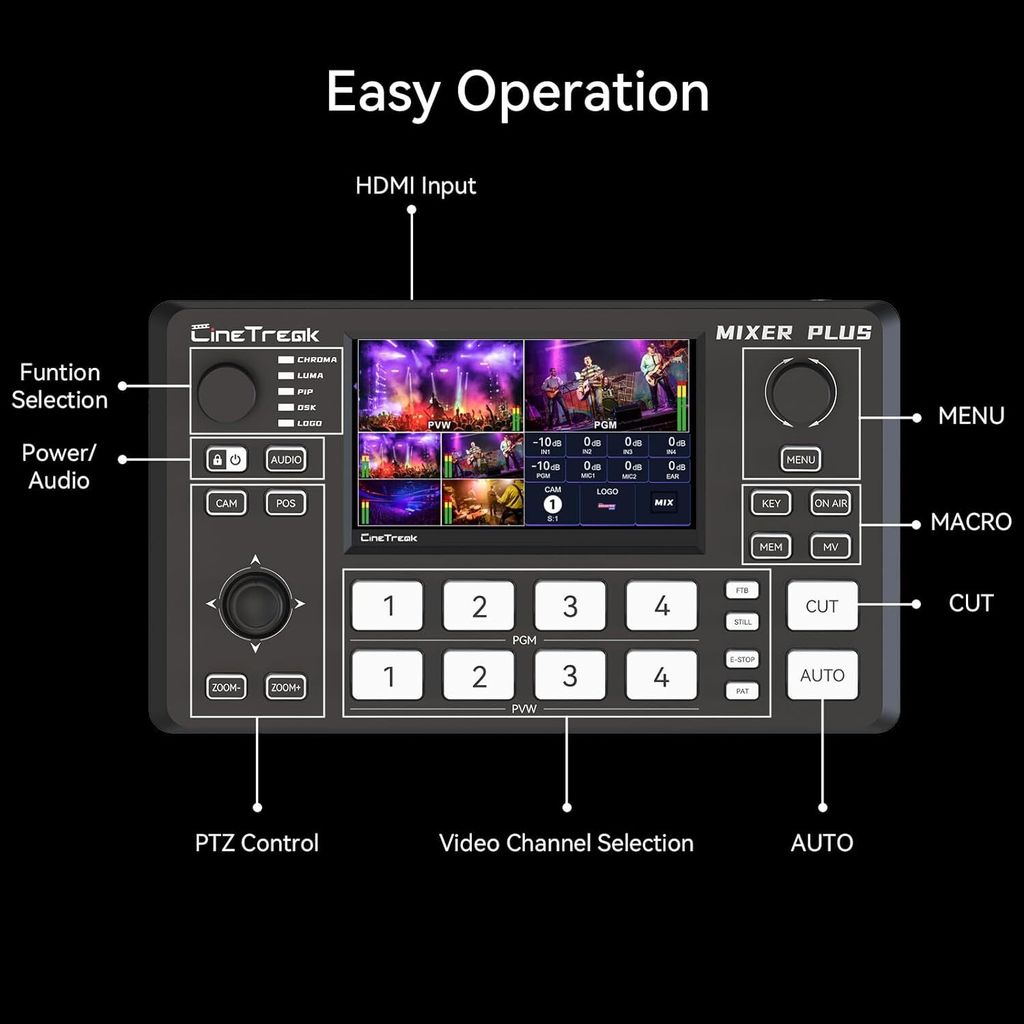

Push-button and web browser control.

Live Streaming

Stream directly to your computer via USB, no capture card required.

Supports most popular streaming platforms.

PTZ Camera Control

Control up to four PTZ cameras using the built-in VISCA protocol.

Adjust camera position, focus, color, and more.

Audio Mixing and Control

Supports up to four HDMI audio channels.

Offers two 3.5mm mic/line audio inputs.

3.5mm headphone output.

In The Box

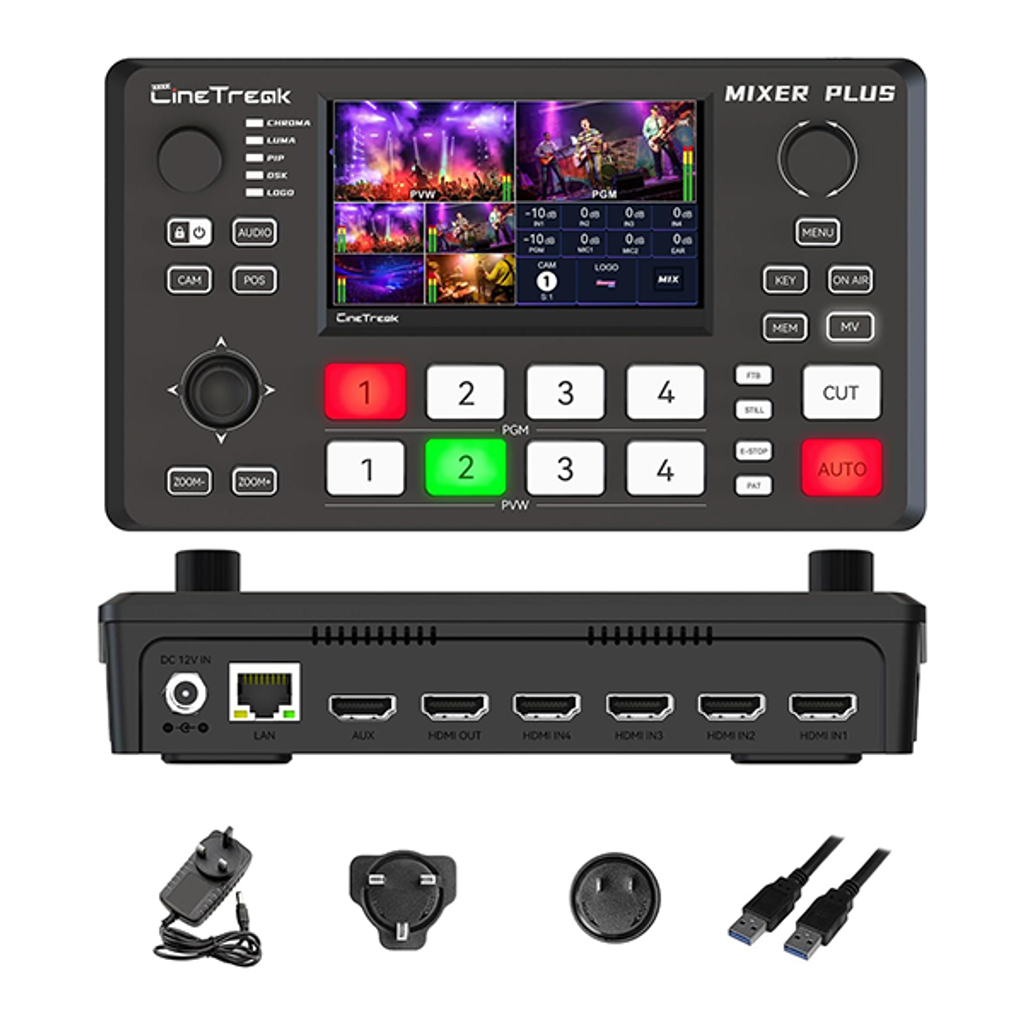

• CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display
• 12 VDC, 2A Power Adapter
• USB-A to USB-A Cable
• Limited 1-Year Manufacturer Warranty
