Avmatrix Wireless Multi-Camera Switcher Tally Light System 4 6 Tally Lamp GPIO Roland Blackmagic

Regular price: RM 1,499.00
Sale price: RM 1,499.00
Regular price: ~~RM 1,699.00~~

Quantity

Fast shipping

Secure payments

Authentic products

Highlights

System includes one tally box and four tally lamps for multi-camera setups.
Wireless transmission range up to 656.2 feet with 433 MHz support.
Multiple interfaces: GPIO, USB Type-C, RS-232/485 compatible with various switchers and vMix software.
Tally lamps feature front and rear indicators, signal strength and battery status displays.
Power options include USB Type-C input or separate 18650 lithium-ion batteries; installation via 1/4"-20 thread.

✦ AI-generated

Key Features

1 x Tally Box, 4 x Tally Lamps
656.2' Wireless Transmission
GPIO, USB, RS-232/485 Interfaces
Compatible with vMix and Switchers
Front and Rear Lamp Indicators
Powered via USB Type-C or Battery
Includes Antenna, USB Type-C Cords
Carrying Case and Power Adapter

Display the on-air status of each camera in your set configuration with the AVMATRIX Wireless Multi-Camera Tally Light System with four tally lamps. The system can wirelessly communicate from up to 656.2' away. Multiple interface connections on the tally box—from GPIO and USB Type-C to RS-232 and RS-485—create wide compatibility with various switchers and vMix software for integration with your preexisting gear setup. An included antenna can attach to the box to improve its signal.

Each tally light has a front and rear indicator light for its on-air status, as well as indicators to display the wireless signal strength and battery level. They can be powered via USB Type-C input or with a separately available 18650 lithium-ion battery. The bottom of each lamp has a 1/4"-20 thread for installation with a hot shoe to the top of a camera. Five USB Type-C cords, a GPIO connector, a power adapter, and a carrying case complete the system's accessories.

Connectivity

Supports 433 MHz wireless or wired tally connection

Up to 656.2' line-of-sight wireless connection distance

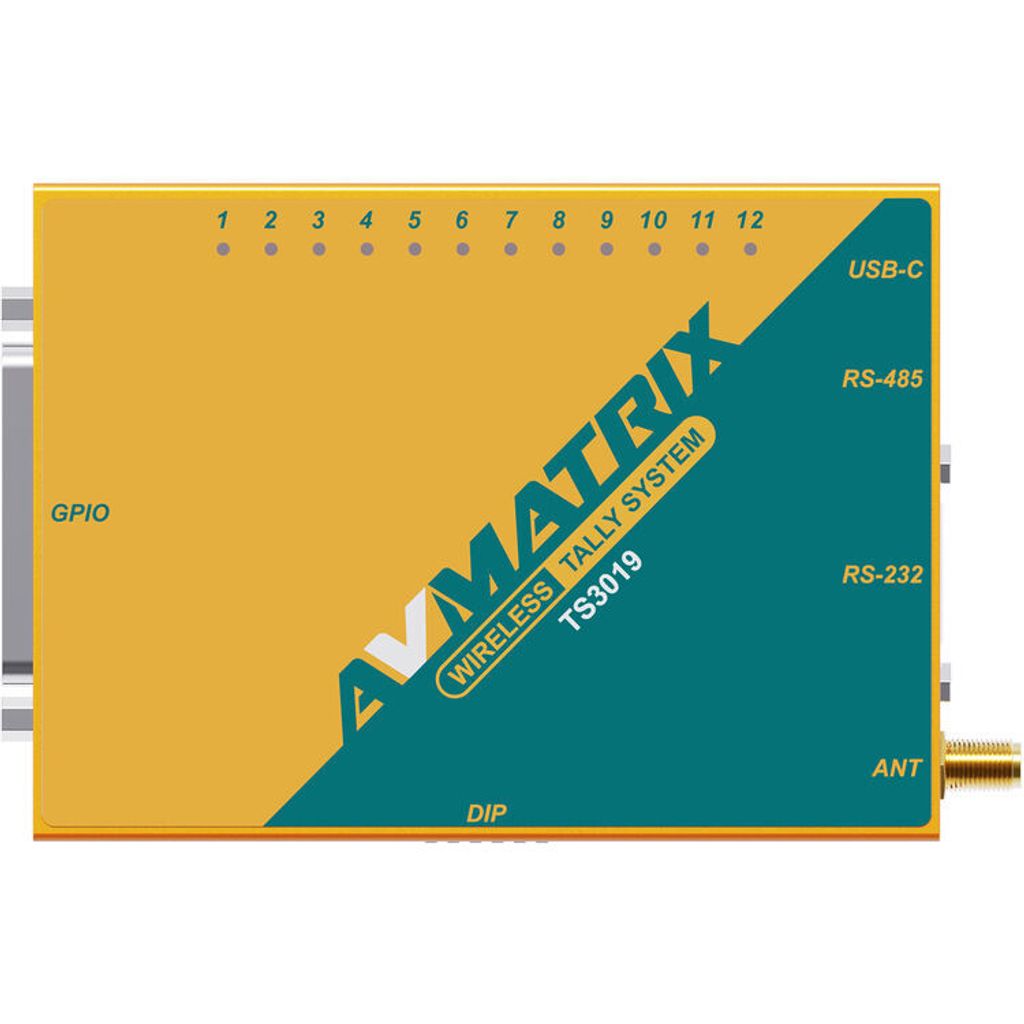

Tally Box

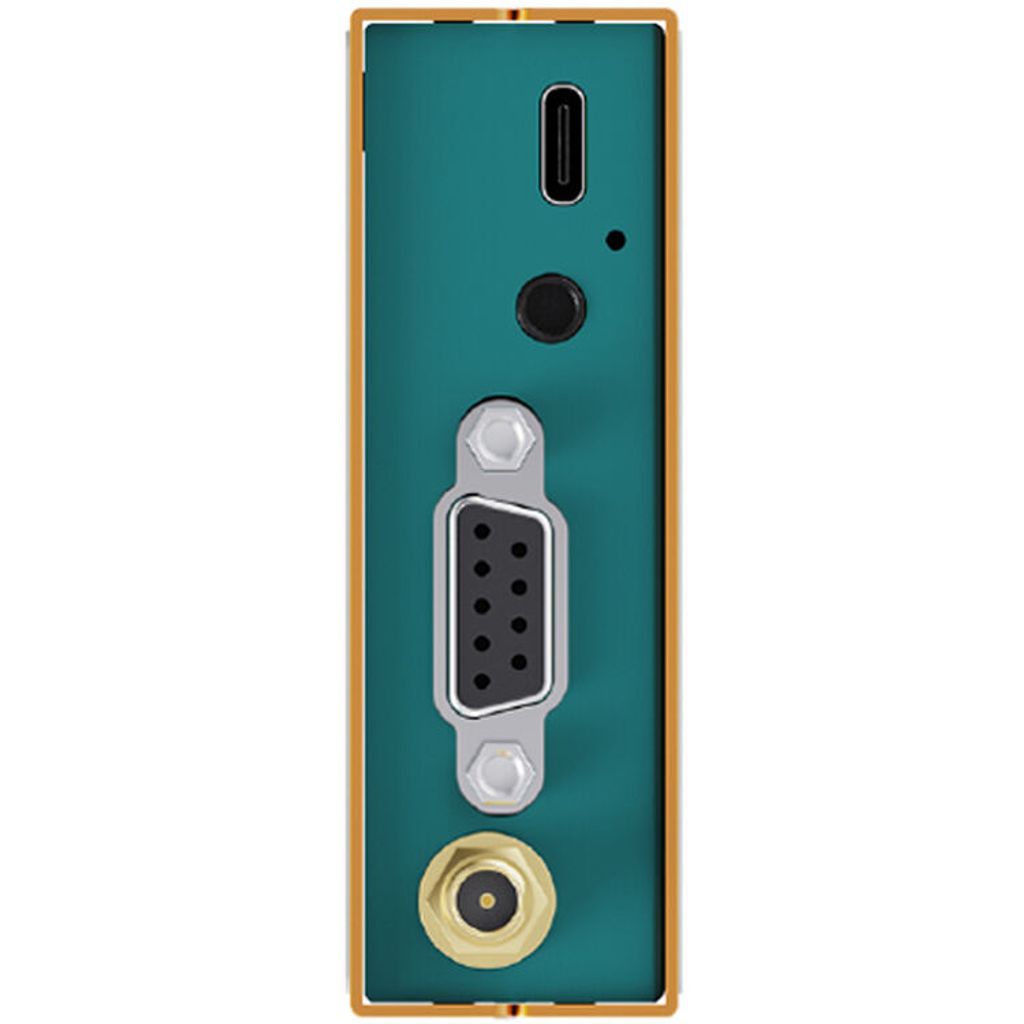

GPIO, USB Type-C, RS-485, and RS-232 interfaces

1-pin antenna input

GPIO compatible with AVMATRIX, Roland, Sony, NewTek, Panasonic, Datavideo, or other tally converter boxes

PTZ remote control via RS-232/RS-485 pass through

USB Type-C input compatible with vMix software

Can support up to 16 tally lamps

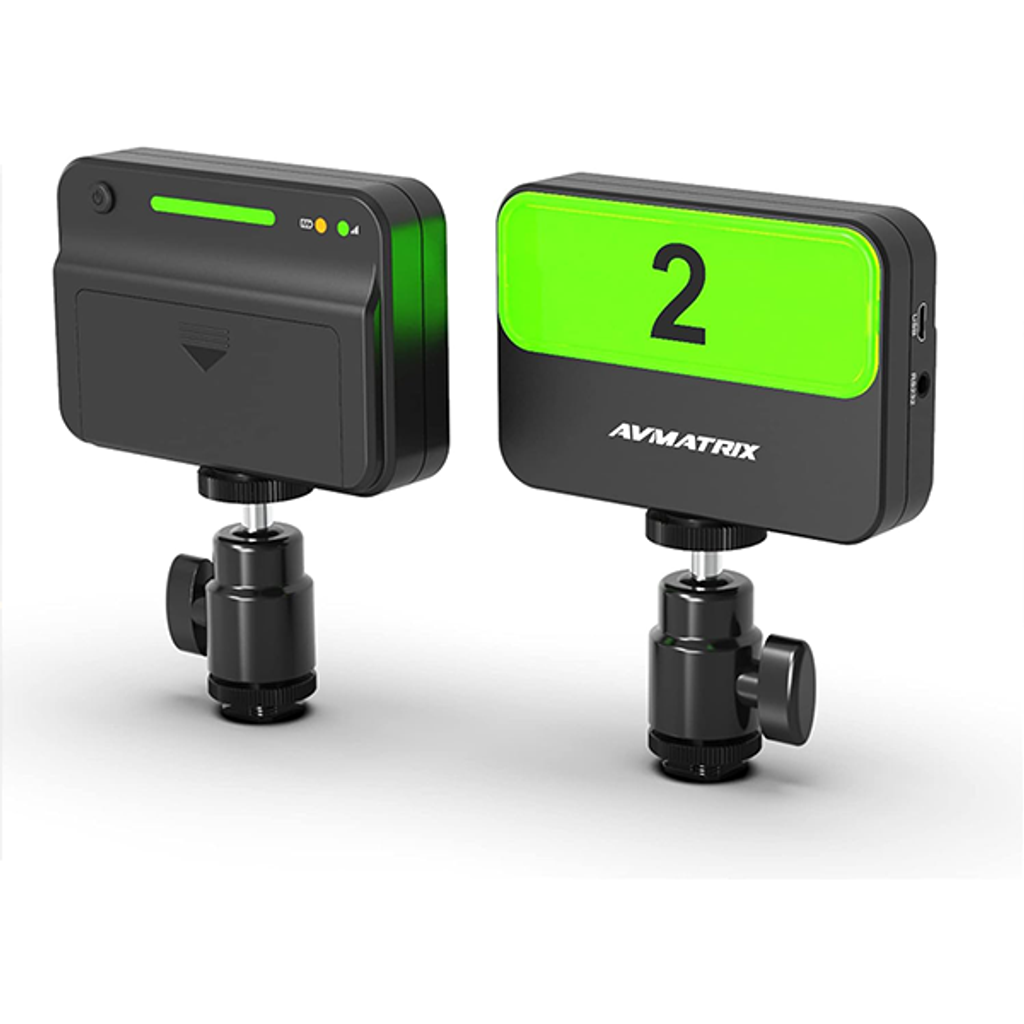

Tally Lamp

PTZ camera connection via RS-485 input

Front and rear indicators with four-level brightness adjustment

Signal strength and battery status indicators

Powered via USB Type-C input or with separately available 18650 lithium-ion battery

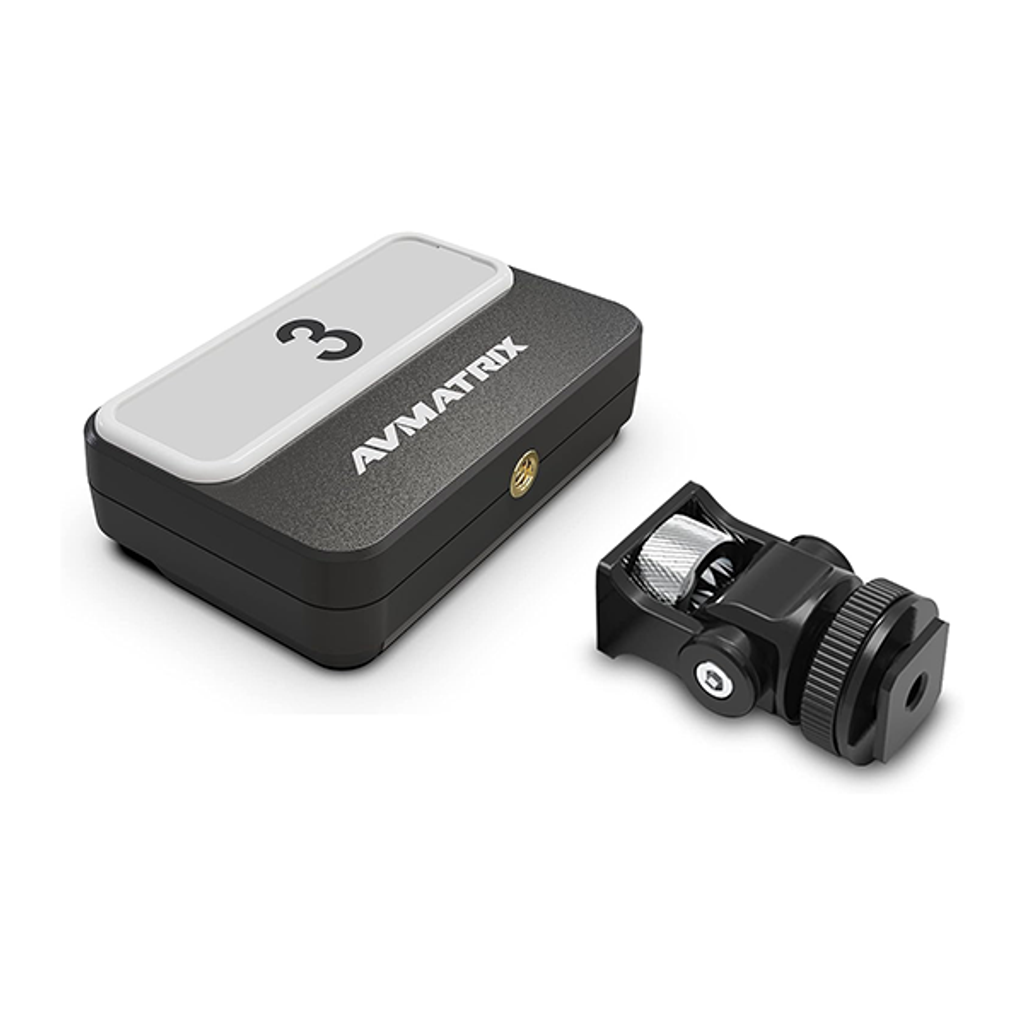

1/4"-20 thread for installation of hot shoe

In The Box

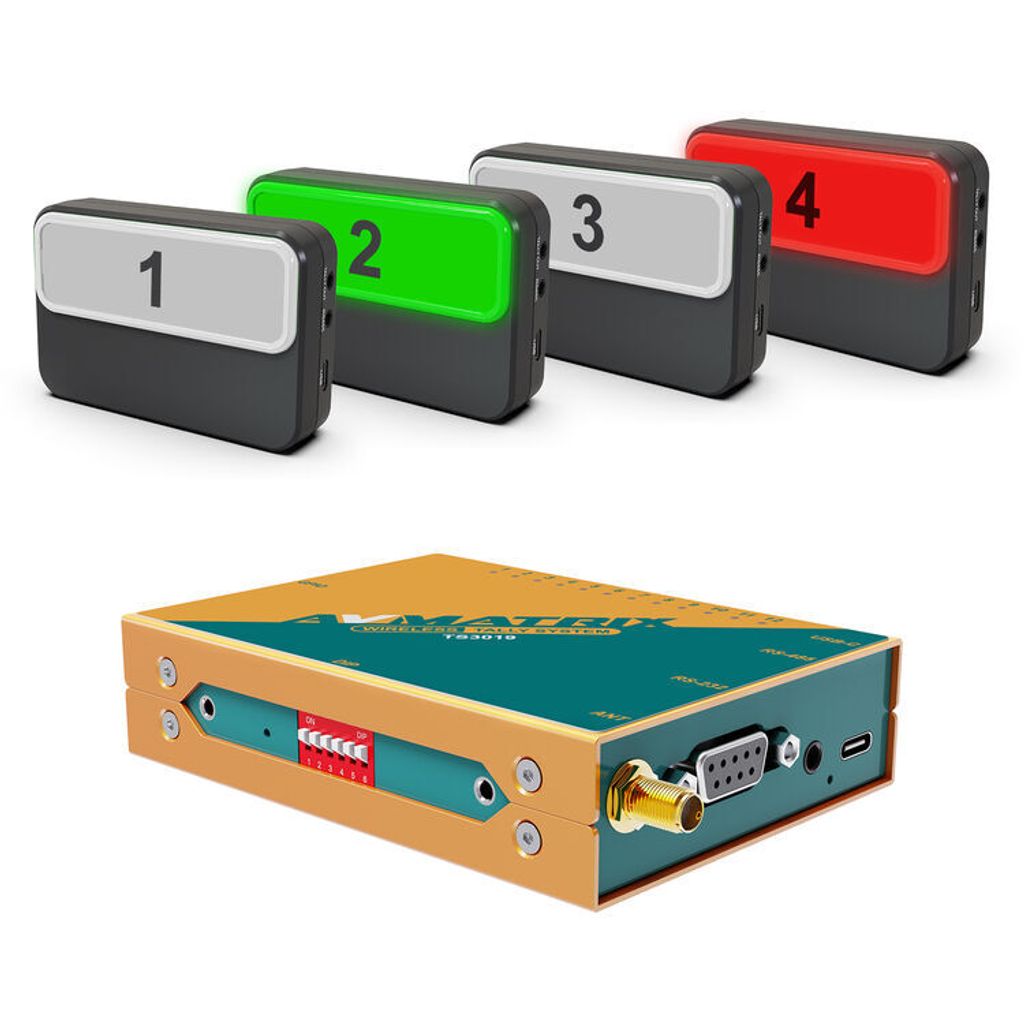

AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)
Tally Box
4 x Tally Lamp
Power Adapter
Antenna
GPIO Connector
5 x USB Type-C Cable
Carrying Case

Follow us @
https://www.facebook.com/cxgstore/
https://www.instagram.com/creatorxgear/

Frequently asked questions

How far can the wireless tally lights communicate from the tally box?

The wireless tally lights can communicate up to 656.2 feet away in line-of-sight conditions.

✦ AI-generated

What types of connections does the tally box support?

The tally box supports GPIO, USB Type-C, RS-232, and RS-485 interfaces for wide compatibility.

✦ AI-generated

Can the tally lights be powered without USB Type-C?

Yes, each tally light can also be powered by a separately available 18650 lithium-ion battery.

✦ AI-generated

Are there indicators to show the status of the tally lights?

Each tally light has front and rear on-air status indicators, along with signal strength and battery level indicators.

✦ AI-generated

Does this system include accessories for easy setup and transport?

Yes, it includes an antenna, USB Type-C cords, power adapter, a GPIO connector, and a carrying case.

✦ AI-generated
