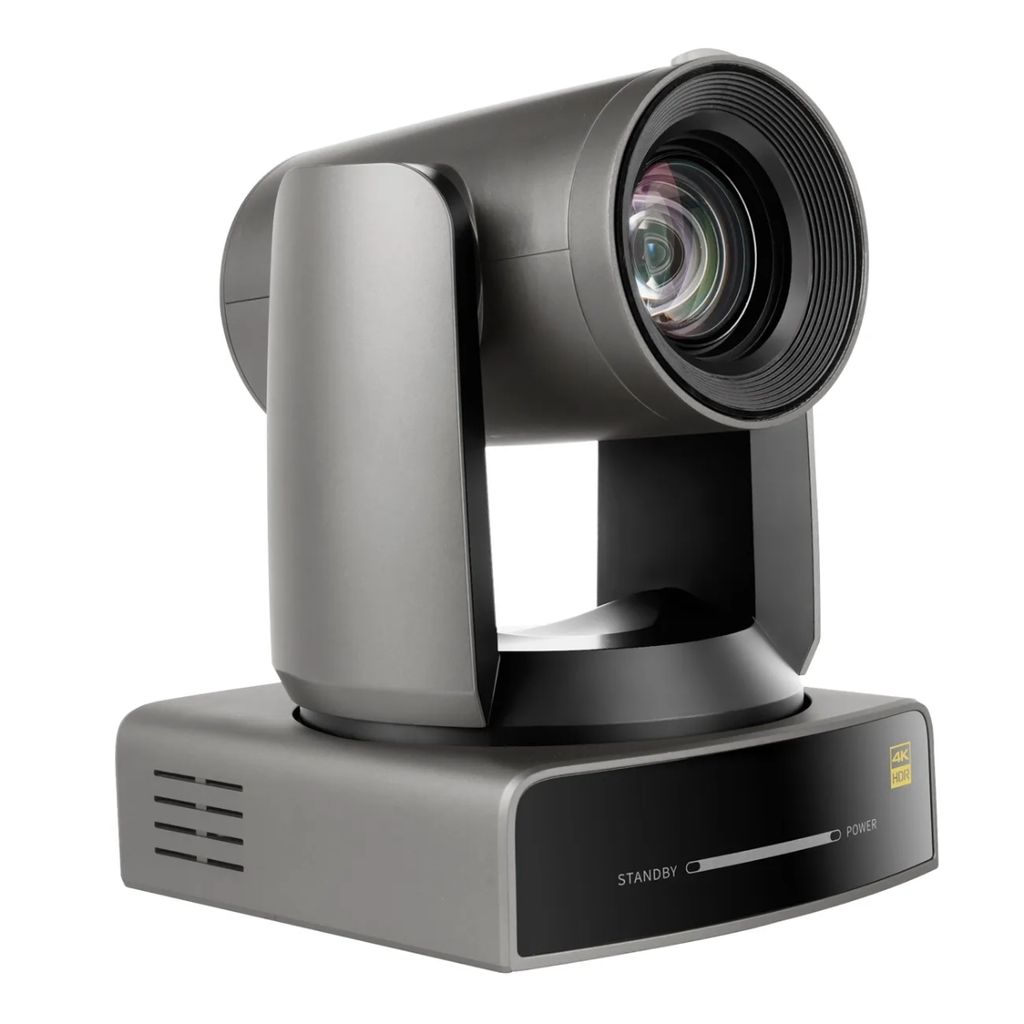

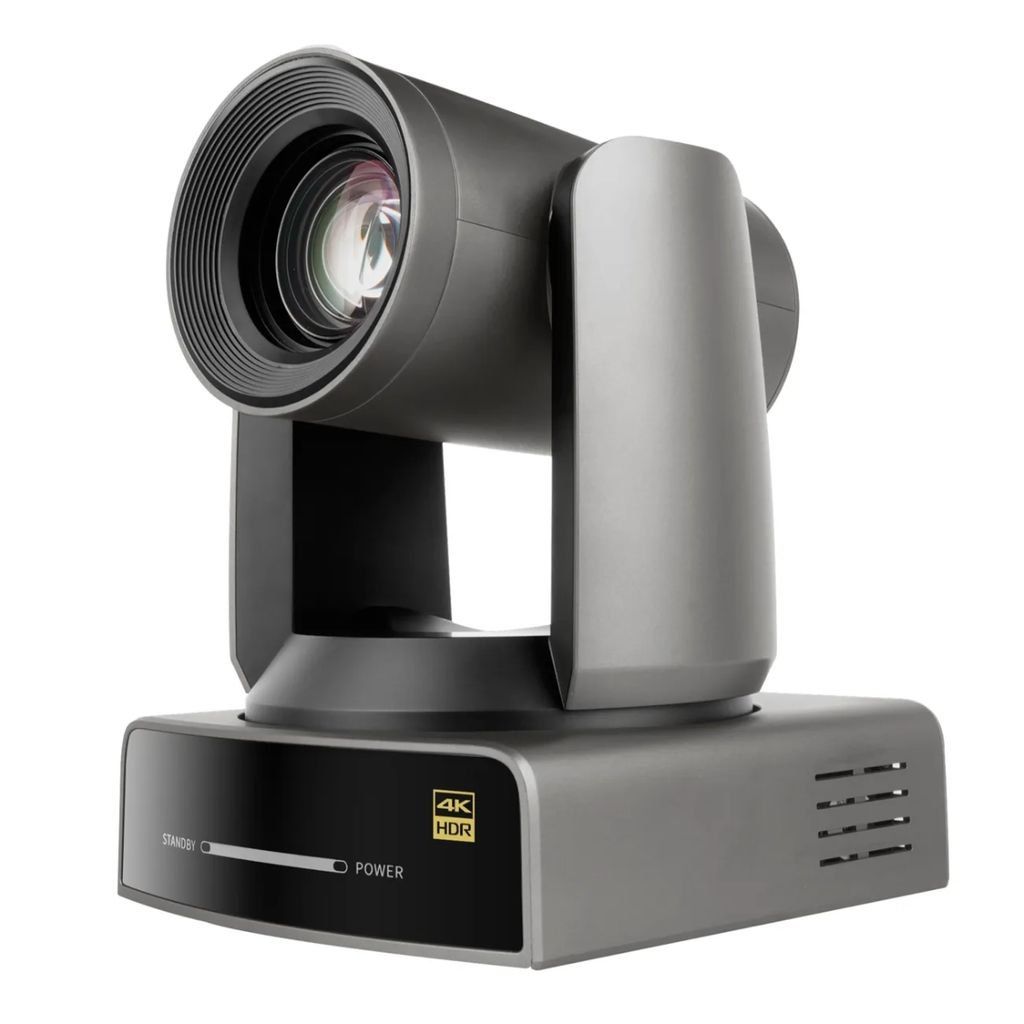

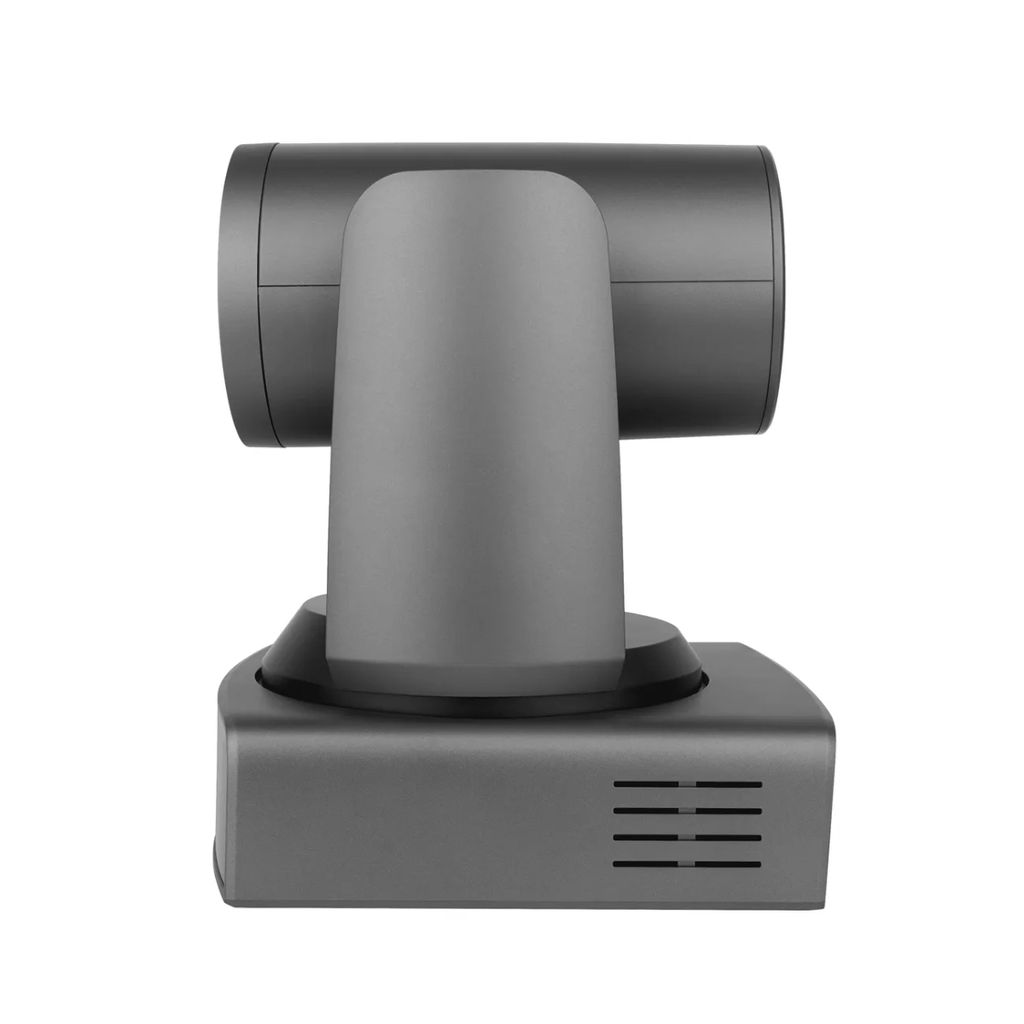

Cross Evolution CX755 4K UHD PTZ Camera

Product Description

The Cross Evolution CX755 is a high-performance 4K UHD PTZ camera engineered for professional AV environments such as corporate conferencing, live production, education, and broadcasting. Designed to deliver ultra-clear video quality and smooth camera movement, the CX755 combines a powerful optical zoom lens with precision PTZ control for flexible coverage in medium to large spaces.

Product Features

🎥 4K Ultra HD Resolution

Up to 3840 × 2160 output

Crisp, detailed image for professional use

🔍 High Optical Zoom (20x–30x class)

Suitable for large rooms, halls, or stage coverage

Capture close-up details without quality loss

🎯 Wide-Angle Lens

Covers more area with fewer cameras

Ideal for conference rooms and lecture halls

🔄 Precision PTZ Control

Smooth pan, tilt, and zoom movement

Preset positions for quick switching

🌐 Multiple Output Options

HDMI / USB / LAN (IP streaming)

Flexible for streaming, recording, or conferencing

🔌 Plug & Play USB (UVC)

Direct connection to PC

Compatible with Zoom, Teams, Webex

🌙 Excellent Low-Light Performance

Advanced image processing reduces noise

Maintains clarity in dim environments

⚡ PoE Support (model dependent)

One cable solution for power + data

🎛️ Professional Control Protocols

VISCA / RS232 / RS485 / IP control

Works with most AV control systems

🎞️ Dual Stream Encoding

H.264 / H.265 / MJPEG support

Optimized for live streaming & recording

⚙️ Specifications

📸 Camera & Video

Image Sensor: 1/2.8” CMOS (approx. 8MP class)

Resolution:

4K UHD (3840 × 2160) @ 30fps

1080p @ up to 60fps

Optical Zoom: ~20x–30x (model class positioning)

Digital Zoom: Up to 16x

Lens: Variable focal length (telephoto capable)

Field of View: Wide-angle to telephoto range

Minimum Illumination: ~0.5 lux (low-light capable)

Signal-to-Noise Ratio: ≥55dB

Noise Reduction: 2D / 3D digital noise reduction

🔄 PTZ Movement

Pan Range: ±170°

Tilt Range: -30° to +90°

Presets: Up to 255 positions

Pan Speed: Up to ~100°/s

Tilt Speed: Up to ~70°/s

🎥 Video Output & Encoding

Video Outputs:

HDMI (4K output)

USB (UVC standard)

LAN (IP streaming)

Video Compression:

H.264 / H.265 / MJPEG

Stream Support:

Main stream + sub stream

🌐 Network & Protocol

Streaming Protocols:

RTSP / RTMP / ONVIF / SRT (typical PTZ class)

Control Protocols:

VISCA (IP / RS232 / RS485)

Pelco-D / Pelco-P

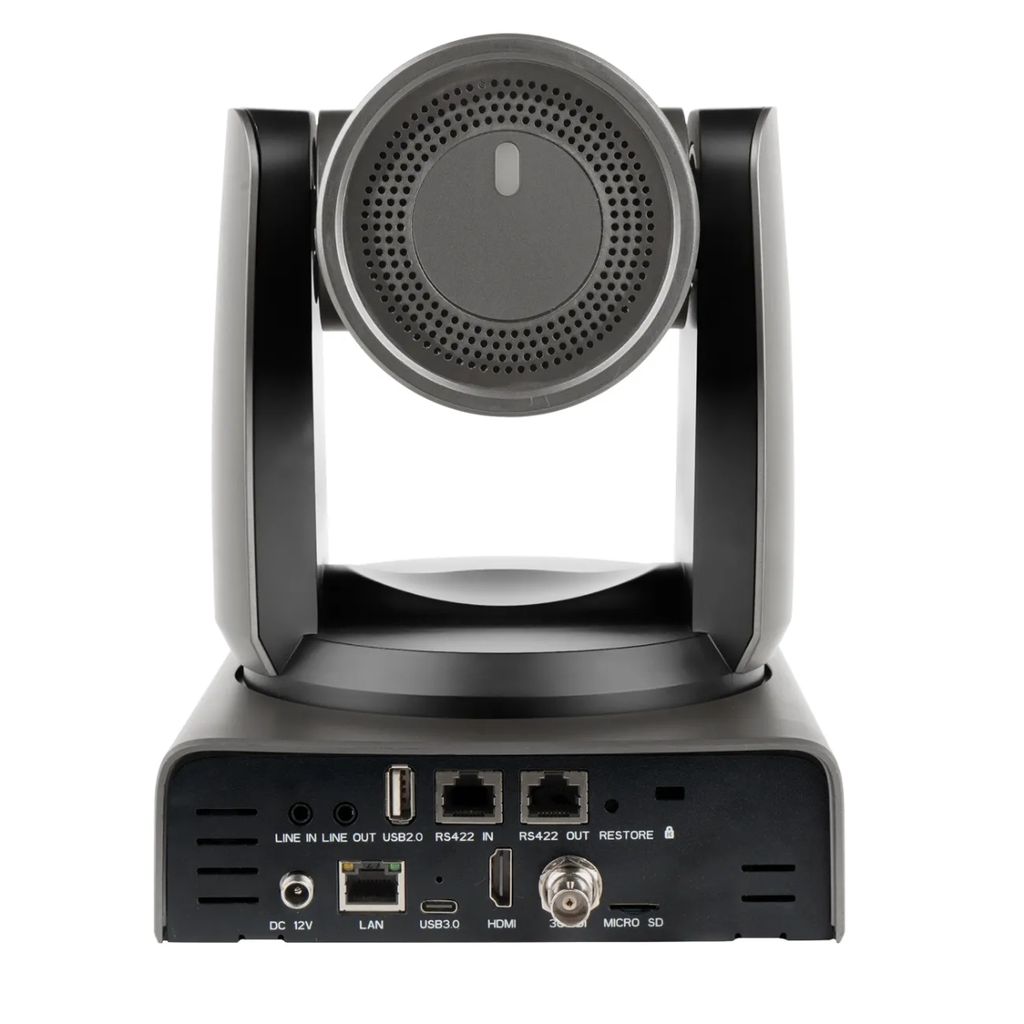

🔌 Connectivity

USB: USB 3.0 (UVC video + audio support)

HDMI: HDMI 2.0 output

LAN: RJ45 (Gigabit Ethernet)

Audio:

Line-in / Line-out (3.5mm)

⚡ Power

Power Supply: DC 12V

Power Consumption: ~18W max

PoE: Supported (802.3af/at, depending version)

📏 Physical

Dimensions: ~140 × 150 × 180 mm class

Weight: ~1.5 kg

Mounting:

Tripod

Wall

Ceiling

📦 In The Box

1 × Cross Evolution CX755 PTZ Camera

1 × IR Remote Control

1 × Power Adapter (DC 12V)

1 × USB Cable

1 × Mounting Bracket (wall/ceiling depending bundle)

1 × User Manual
