Key Features
Memory 1 Pro - SDI & HDMI
- 1920 x 1080 Touchscreen Display
- Up to DCI 4K25 HDMI, 1080p60 3G-SDI
- 1080p60 MP4 File Recording to SD Card
- 2000 cd/m² Brightness
- Improved UI Interface, 3D LUT Support
- HDR Monitoring, Waveform
- Real-Time Focusing, Custom RGB Settings
- Cold Shoe Mount, 1/4"-20 Thread
- Embedded Audio, 3.5mm Headphone Port
- NP-F Battery Plate, DC Input
Memory 1 - HDMI
- 1920 x 1080 Touchscreen Display
- Up to DCI 4K25 HDMI Video Input
- 1080p60 Recording to SD Card
- 2000 cd/m² Brightness
- HDR Monitoring, 3D LUT Support
- Waveform, Vectorscope, Focus Peaking
- Markers, False Color, Color Temperature
- Embedded Audio, 3.5mm Headphone Port
- Power via L-Series/F970 or DC Input
- 1/4"-20 Thread & Shoe Mount Included

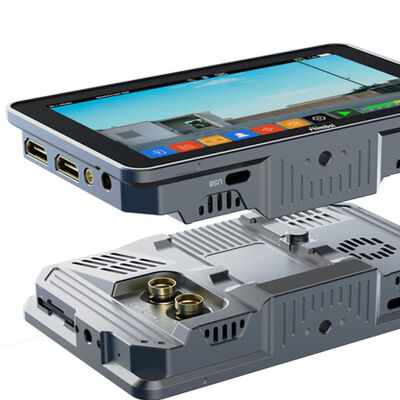

With upgraded features and user interface, the Memory I Pro 5.5" HDMI & 3G-SDI Touchscreen Recorder/Monitor from Shimbol can record and view up to DCI 4K25 HDMI or 1080p60 3G-SDI video with applied custom 3D LUTs. The Pro monitor features a 5.5" 1920 x 1080 touchscreen display with a 178° viewing angle, 1200:1 contrast ratio, and 2000 cd/m² brightness for visibility even in bright sunlight. Its interface includes HDMI and 3G-SDI inputs and outputs, a USB-C port for debugging, a 3.5mm headphone jack for embedded audio, and an SD card slot for onboard recording. Multiple visual assist functions can be toggled with the improved UI and touchscreen control.
HDMI and 3G-SDI Dual Interfaces
- HDMI input/output, 3G-SDI input/output
- Supports up to DCI 4K25 HDMI video and 1080p60 3G-SDI video
- Convert 3G-SDI inputs to HDMI outputs
- Embed 3D LUT into your outputted video

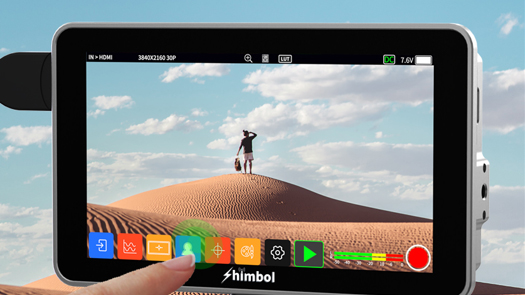

Improved UI for Intuitive Control
New icons on the touchscreen display make for easier and quicker access to desired functions like scopes, recording functions, safe frames, playback, image flip, and other settings. This makes for smooth monitoring in the field.

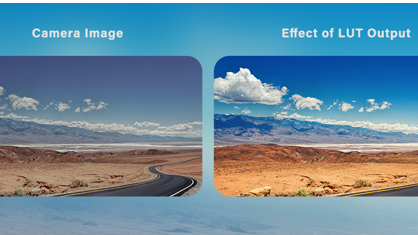

Upload custom 3D LUTs in .cube formats to the monitor or use presets to better visualize your final product while shooting on location. Output your video with the LUT attached to your inserted SD card and save time in post-production.
- Supports recording and playback with 3D LUTs
- Supports real-time HDMI and 3G-SDI recording
- Built-in player for internal review
- Optional bit rate recording
- SD card slot supports up to 1080p60 recording
- 32 to 256 GB cards supported, internal formatting
- MP4 file formats compatible with Da Vinci, iMovie, and other editing platforms
Customize your RGB settings for a refined screen display and color correction. Adjust parameters like RGB gain and offset.

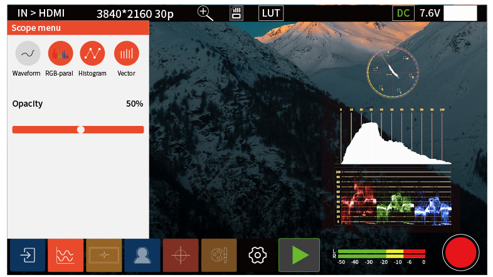

Other Visual Assist Functions
- Focus your image in real-time, view focus peaking
- Updated high-precision waveform
- False color adjustment

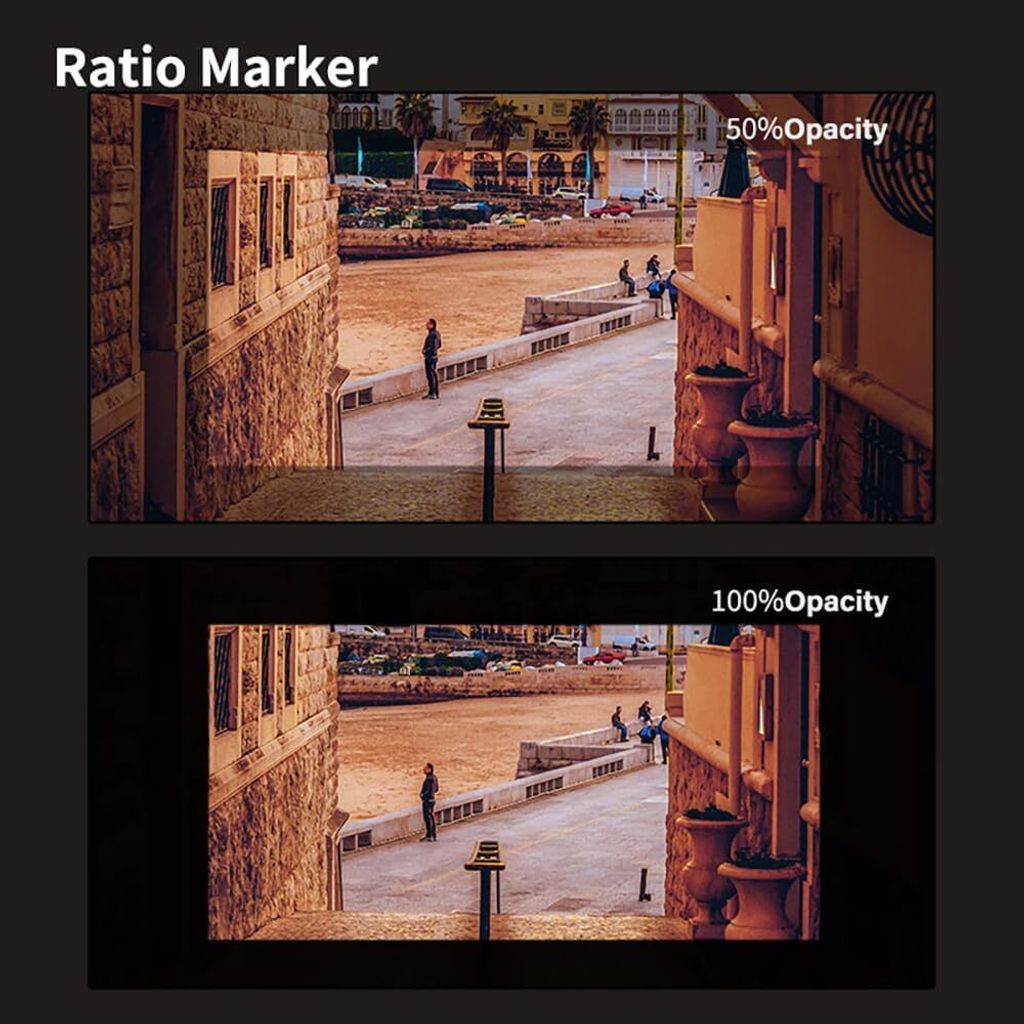

- Masking with customized screen ratios
- Color temperature adjustment
Included Accessories and Power Options
- Power the Memory I Pro with its L-series battery plate and compatible NP-F970 battery. A DC input supports other external power supplies.
- A 1/4"-20 thread on the monitor allows you to mount it onto the included cold shoe mount, which can tilt the display for improved visibility.
- Other included accessories are an SD card, tempered screen protector, HDMI cable, and SDI cable.
In the Box
Memory 1 Pro
- Shimbol Memory I Pro 5.5" 3D LUT HDMI & 3G-SDI Touchscreen Video Recorder/Monitor
- Cold Shoe Mount Adapter
- SD Card
- Tempered Screen Protector
- HDMI Cable
- SDI Cable
- Limited 1 Year Manufacturer Warranty
Memory 1
- Shimbol Memory I 5.5" 3D LUT 4K HDMI Touchscreen Recorder/Monitor
- SD Card
- SD Card Holder
- Tempered Screen Protector
- HDMI Cable
- Shoe Mount Adapter
- Limited 1 Year Manufacturer Warranty
