DeckLink Micro Recorder

Regular price
RM 820.00
Sale price
RM 820.00
Regular price
RM 820.00
Fast shipping | CXG
Fast shipping
Secure payments | CXG
Secure payments
Authentic products | CXG
Authentic products

Key Features

  • 1-Lane PCIe Slot Capture Card
  • SDI and HDMI Inputs
  • 4:2:2 Video Sampling
  • 8 Ch Audio Embedded in SD SDI
  • OS Windows and Linux Compatible

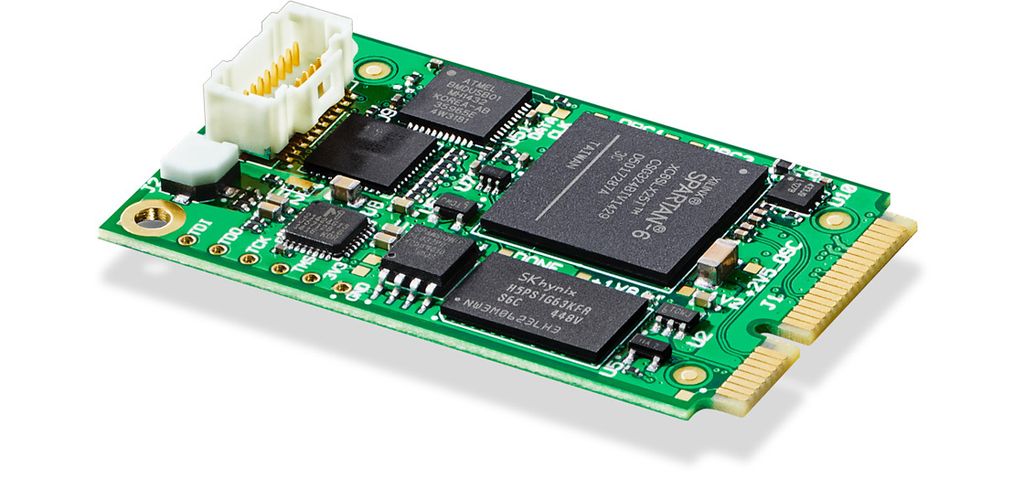

The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built-in Hirose® and Molex® connectors.

Technical Specifications


PCIx1 Gen 1

PCI Express® Mini Card Electromechanical Specification. Note, however,

that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.


SD Format Support

525i/59.94 NTSC, 625i/50 PAL.

HD Format Support

720p50, 720p59.94, 720p60,

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,

1080i50, 1080i59.94, 1080i60,

1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.

In the Box

  • DeckLink Micro Recorder
  • Limited 1-Year Warranty
