Feelworld Seectec ATEM156 4K 15.6" Quad-Split Director Broadcast Monitor / 17.3" P173-9HSD

Regular price: RM 1,999.00
Sale price: RM 1,999.00
Regular price: ~~RM 2,399.00~~

Fast shipping

Secure payments

Authentic products

Highlights

Supports quad DCI 4K24/UHD 4K30 HDMI input with loop output for four signals.
Features a 15.6-inch IPS display with 1920 x 1080 resolution and 170° viewing angle.
Offers multiple screen split options including quad, dual (vertical/horizontal), single, and Picture-in-Picture modes.
Includes monitoring tools such as peaking focus assist, false color, anamorphic scaling, and image freeze.
Equipped with V-mount battery plate, 12 VDC input, aluminum housing, and various mounting options including 100 and 75mm VESA mounts.

✦ AI-generated

Quantity

Key Features

Quad DCI 4K24/UHD 4K30 Input & Loop Out
Multiview for Switchers like ATEM Mini

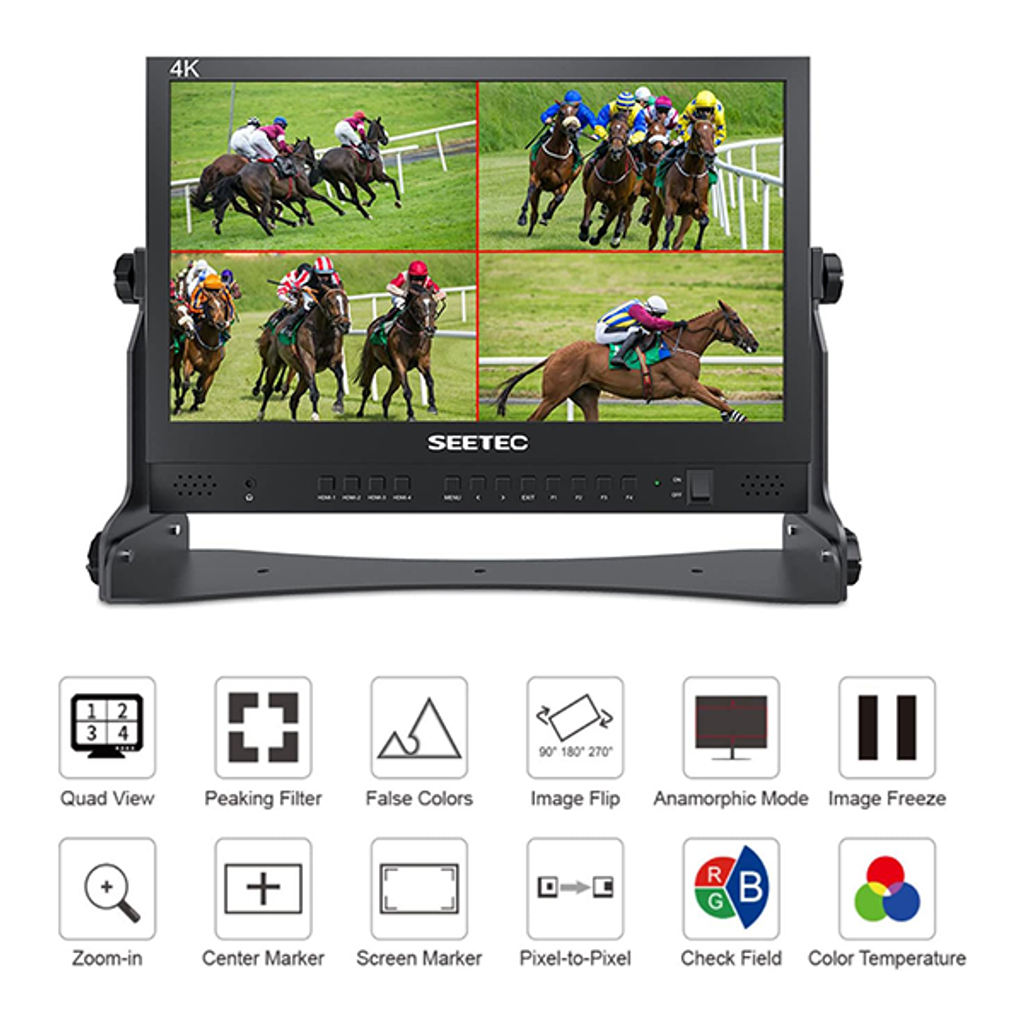

Quad/Dual/Single View with PiP
1920 x 1080 Resolution, 800:1 Contrast
250 cd/m², 170° Viewing Angle
Peaking, False Color, Anamorphic & More
3.5mm Stereo Headphone Jack
V-Mount Battery Plate & 12 VDC Input
100 & 75mm VESA Mounts
Aluminum Housing

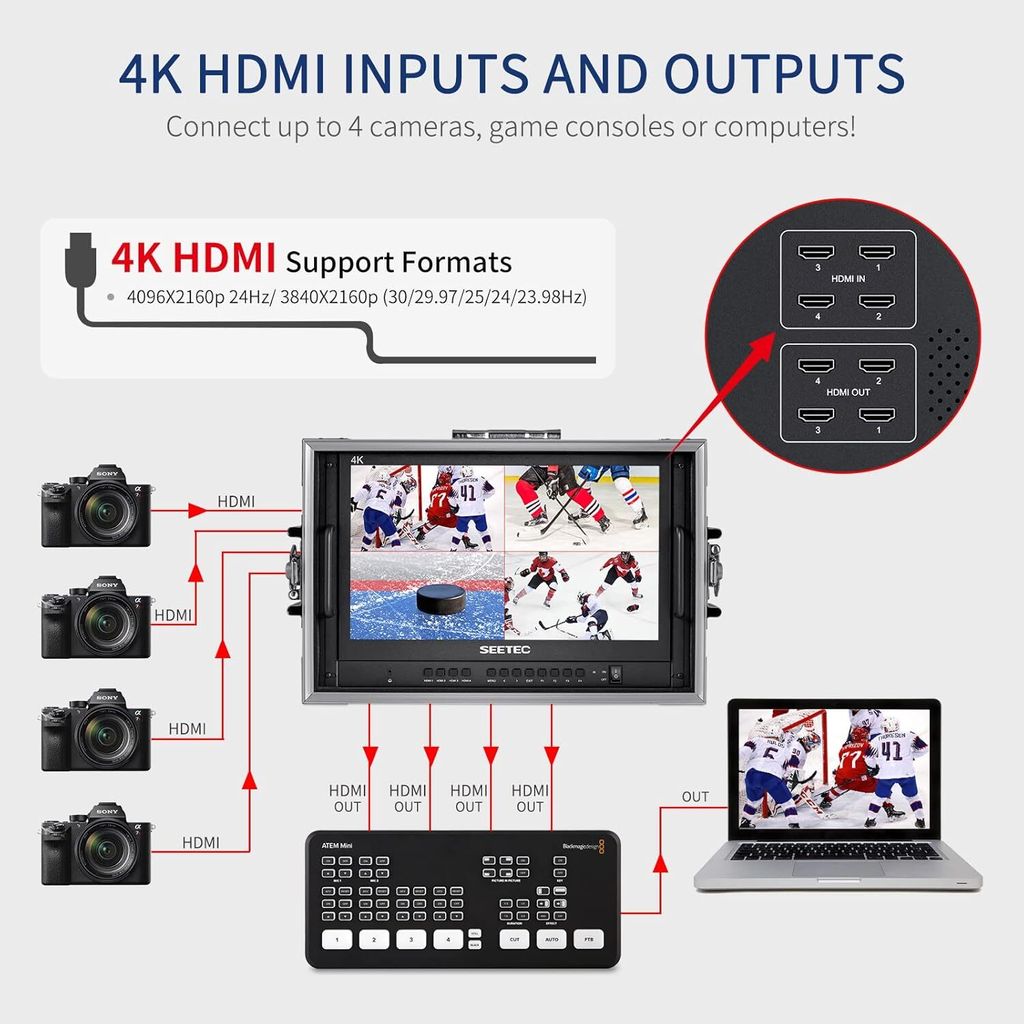

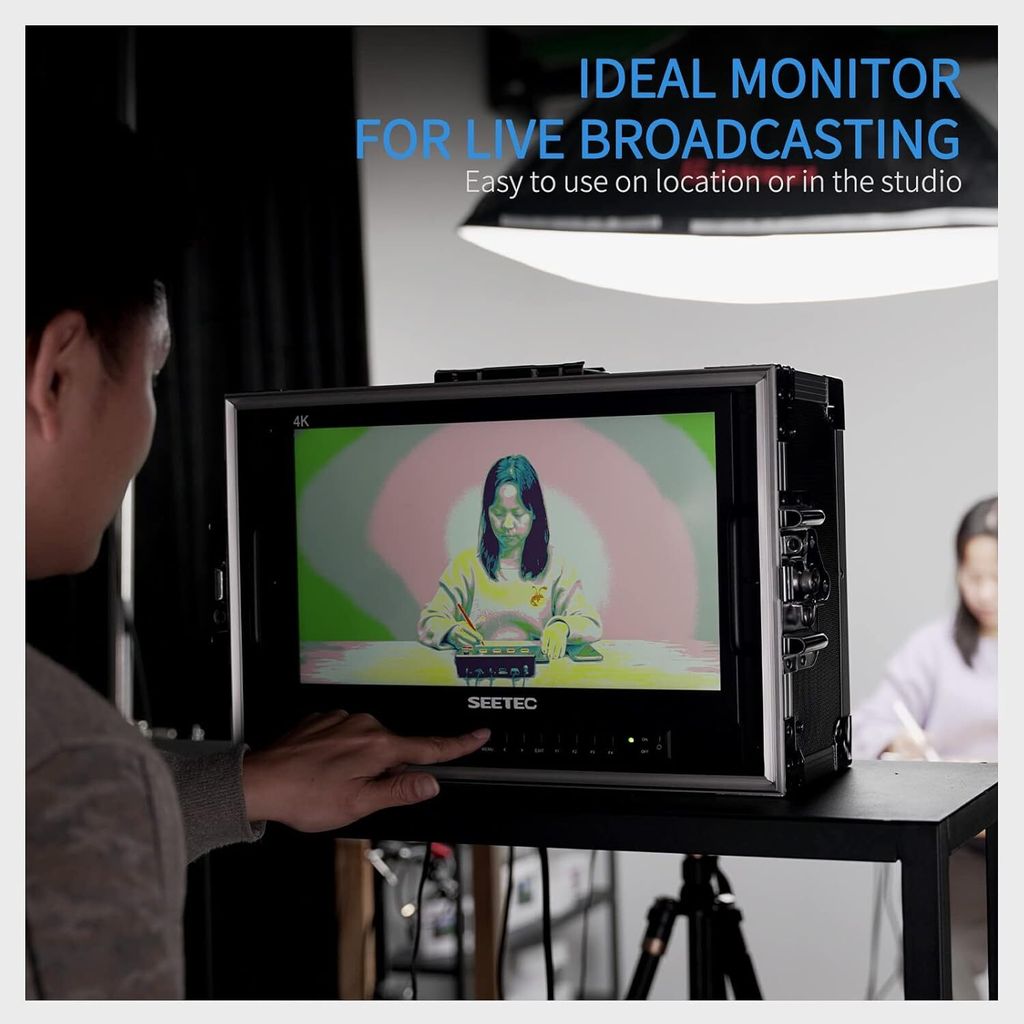

The FeelWorld ATEM156 can be used as a companion to switchers that don't have a multiview function, such as the Blackmagic ATEM Mini switcher. It allows you to view four DCI/UHD 4K HDMI signals in a quad split. Four HDMI loop outputs let you connect your four signals to the switcher. You can move any signal to any window in the quad split. A PiP image can also be displayed in each window. Alternatively, a dual view or single image can be displayed on the screen, also supporting Picture-in-Picture. Dual view can be set up in a vertical or horizontal split, and you can set one side of the split to be larger than the other.

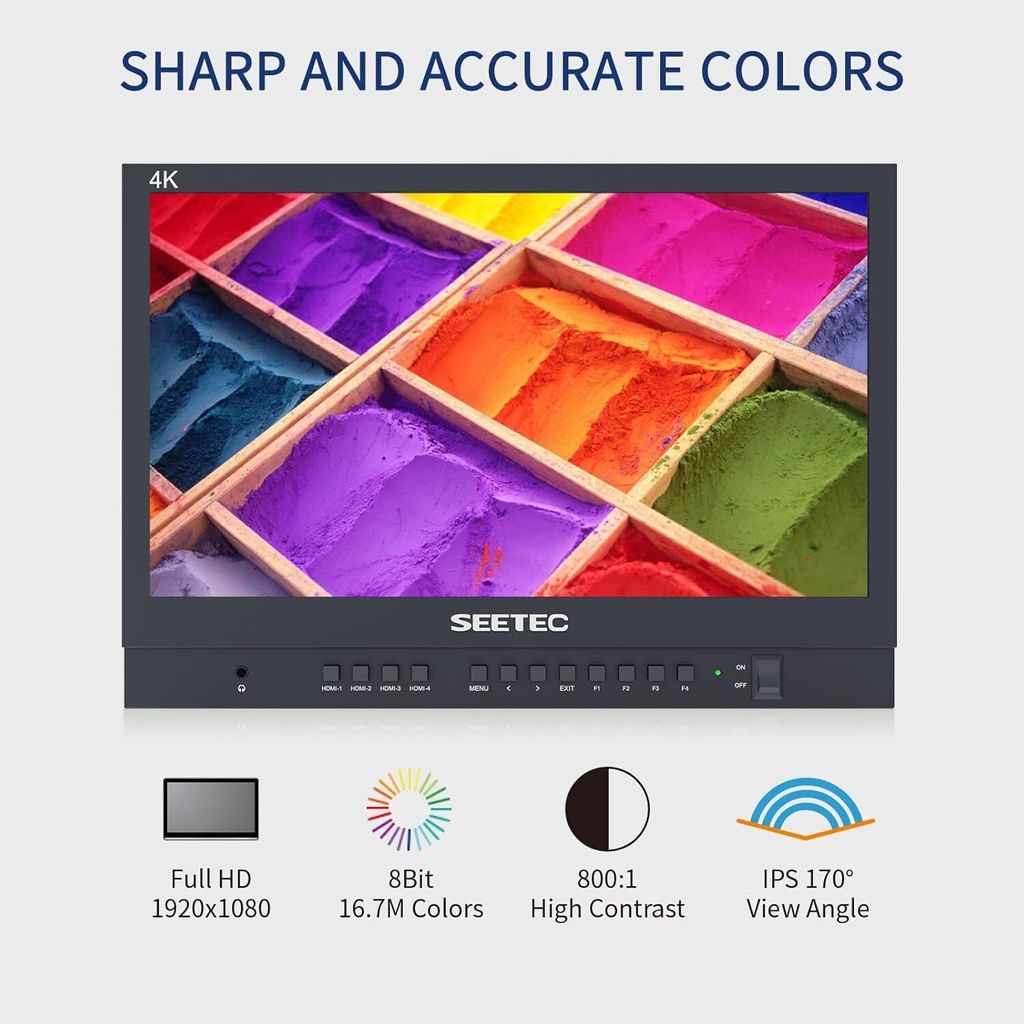

The ATEM156 features a 15.6" IPS display with a 1920 x 1080 resolution, 250 cd/m² brightness, and 170° viewing angle. Software features, such as peaking and false color, additionally let you analyze each image. A 3.5mm stereo headphone jack on the front panel allows for audio monitoring.

Additional Features

DCI 4K24/UHD 4K30 HDMI input and loop output

Rec.709 color standard

Aluminum housing

Desktop bracket with three 1/4"-20 holes for various mounting options, including hang-mounted

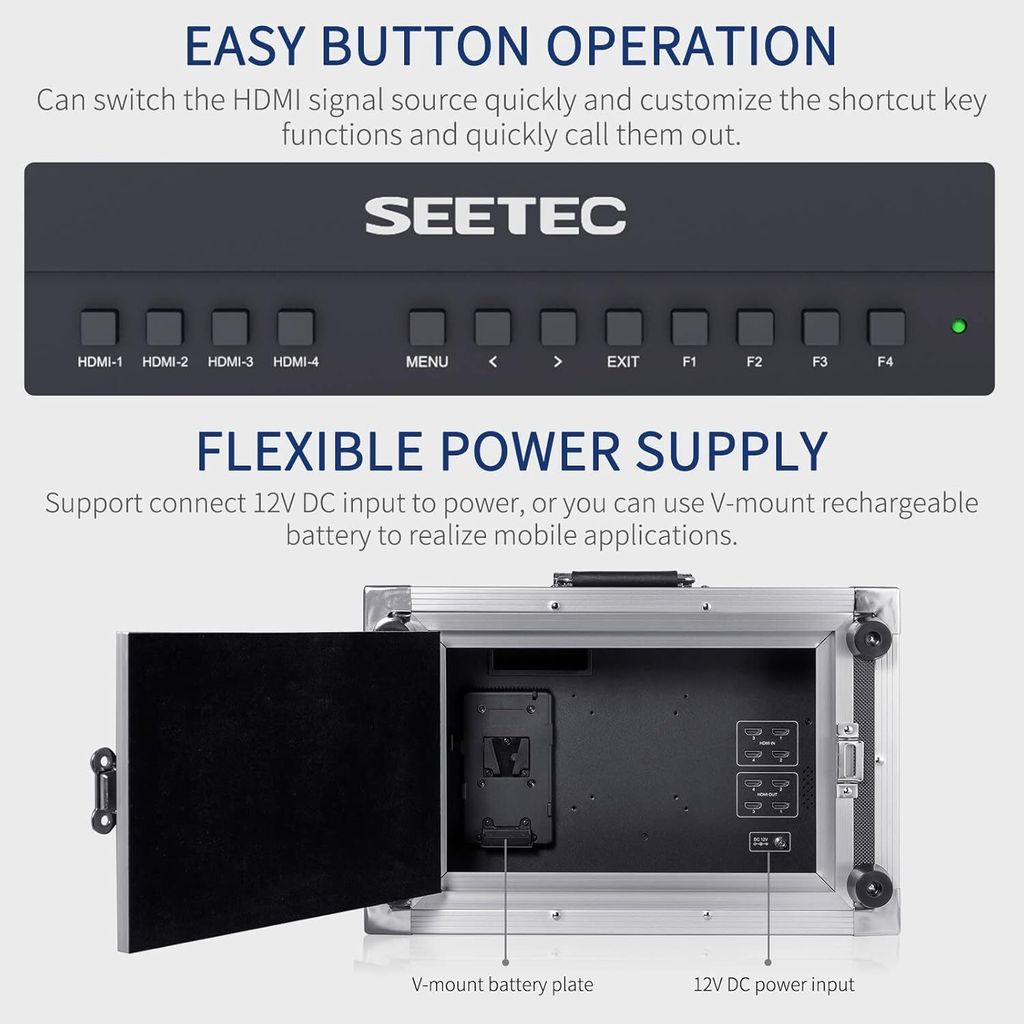

Customizable F1 to F4 shortcut keys

V-mount battery plate

12 VDC power input

100 and 75mm VESA mounts

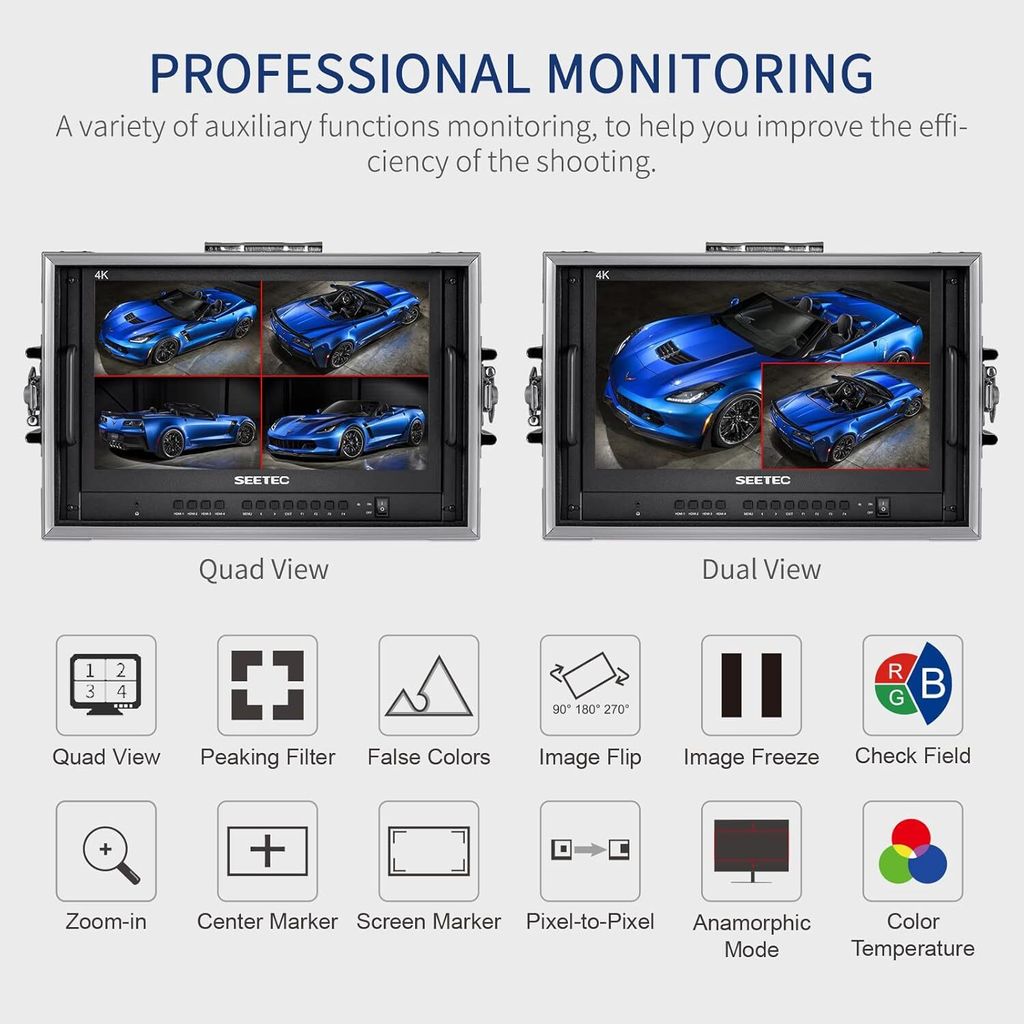

Monitoring Features

Screen splits: 1P, 2P LR, 2P TB, 2P PiP, or 4P

Peaking focus assist

False color

Anamorphic: x1.33, x1.5, x1.8, or x2.0

Rotate: 0/90/180/270°, H mirror, V mirror

Check field: red, green, blue, mono

Image freeze

Zoom

Pixel to pixel

Center marker

Safety marker: 80/85/90/93/96%, 4:3, 2.39:1, 2.35:1, 1.85:1

Line color: red, green, blue, white

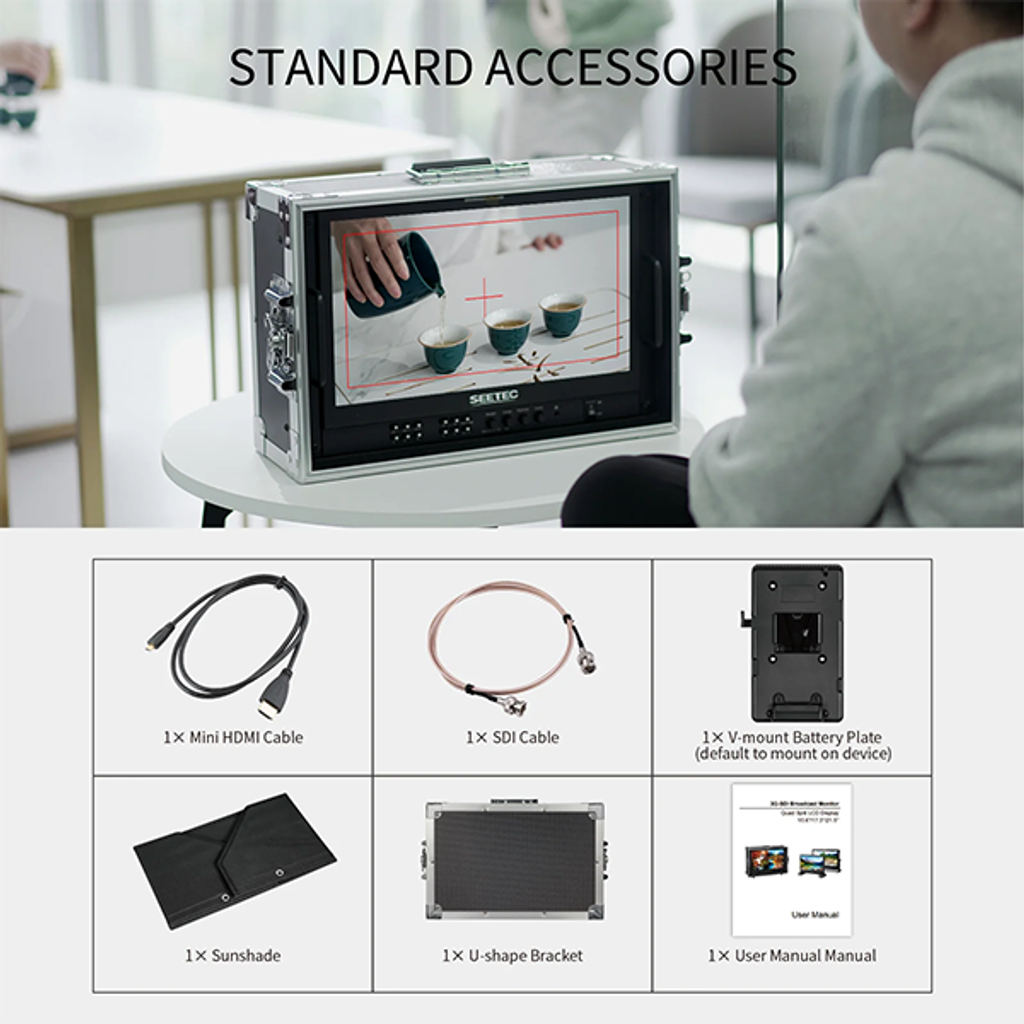

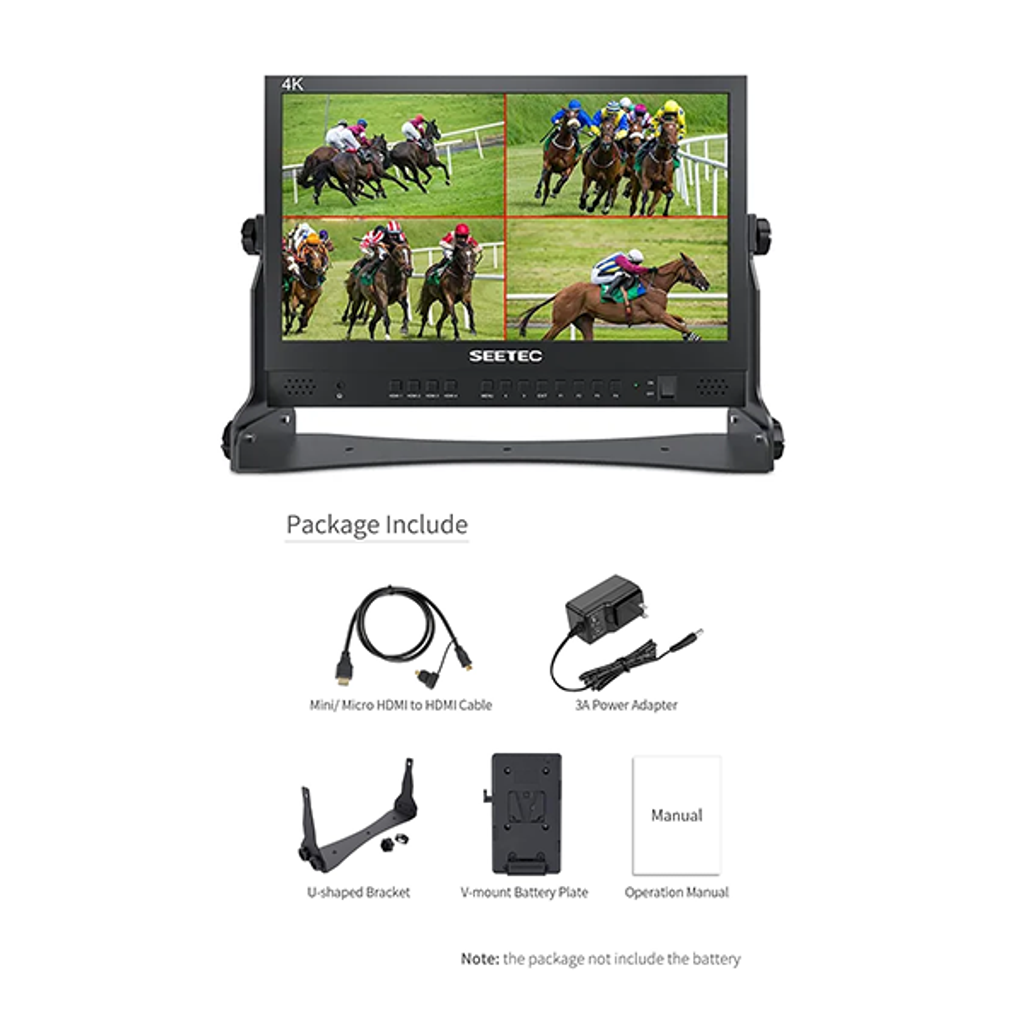

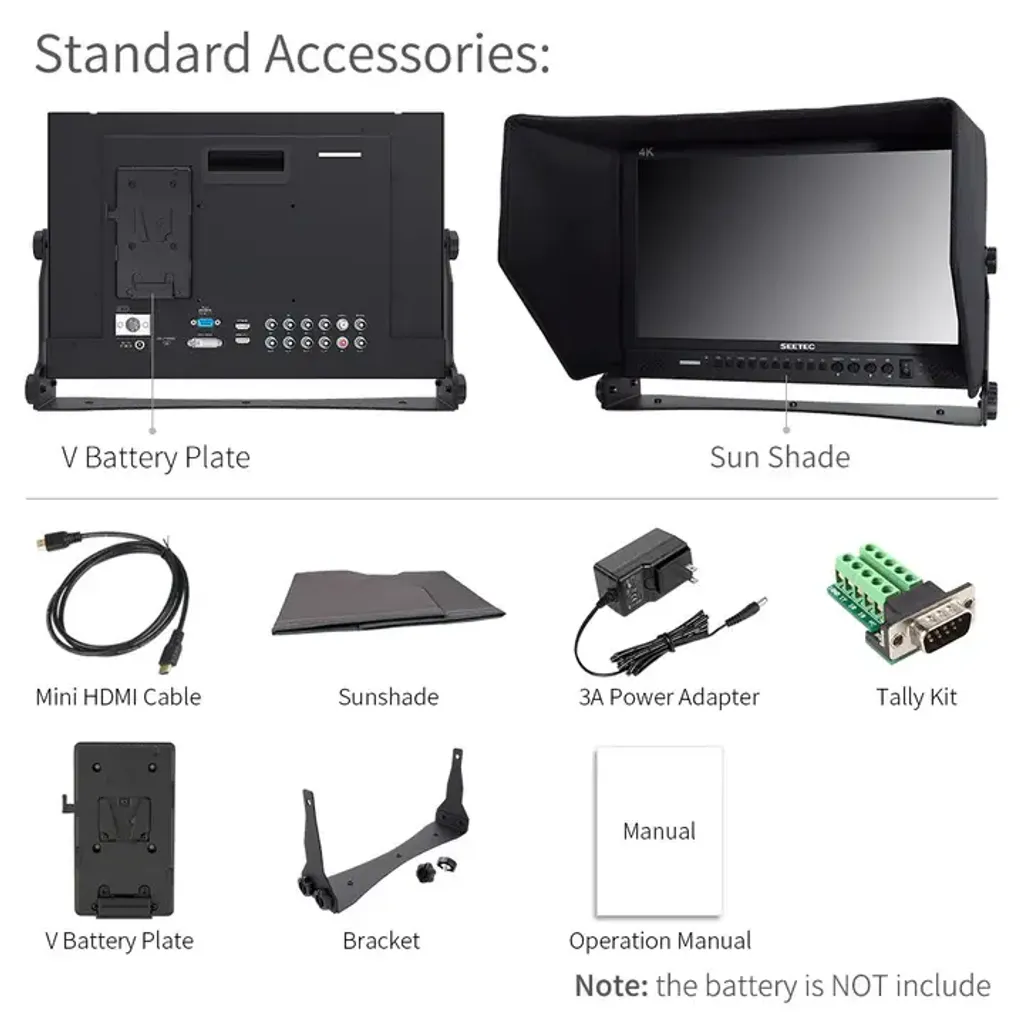

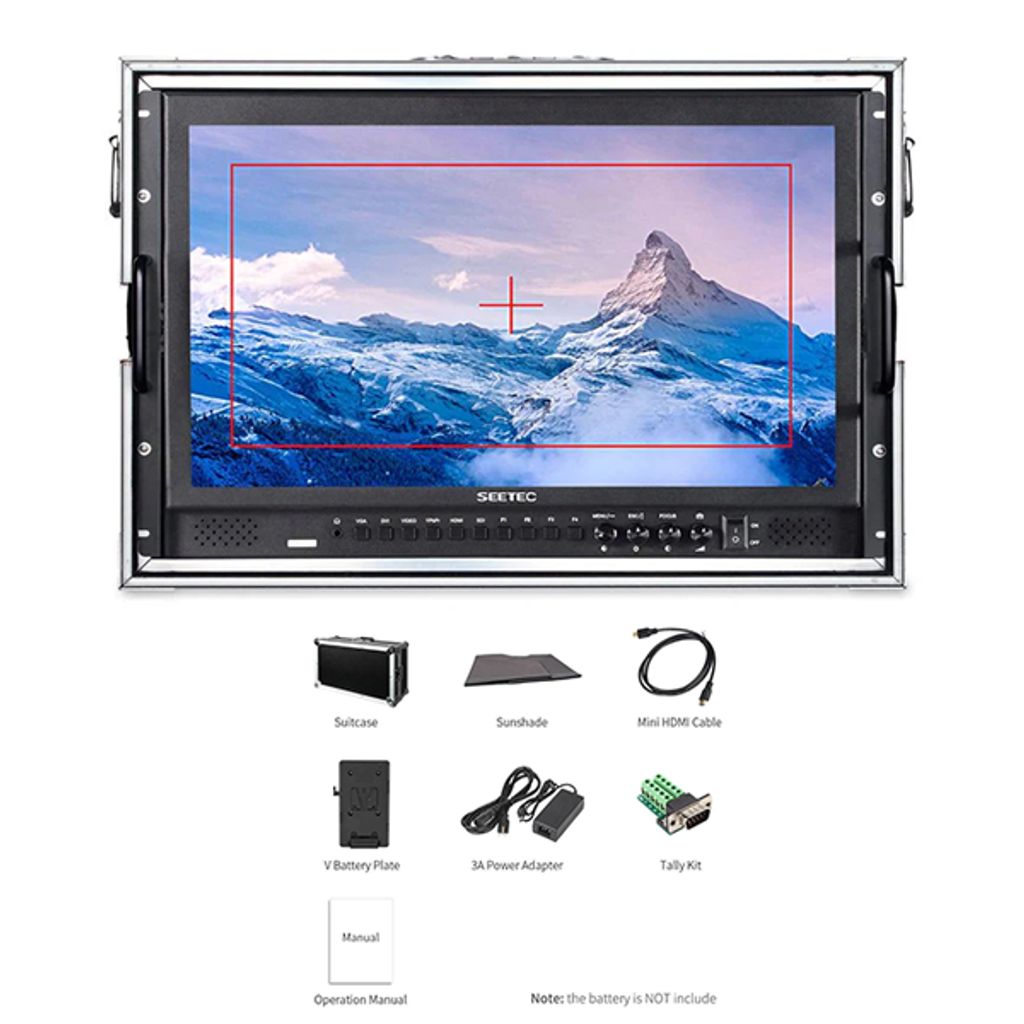

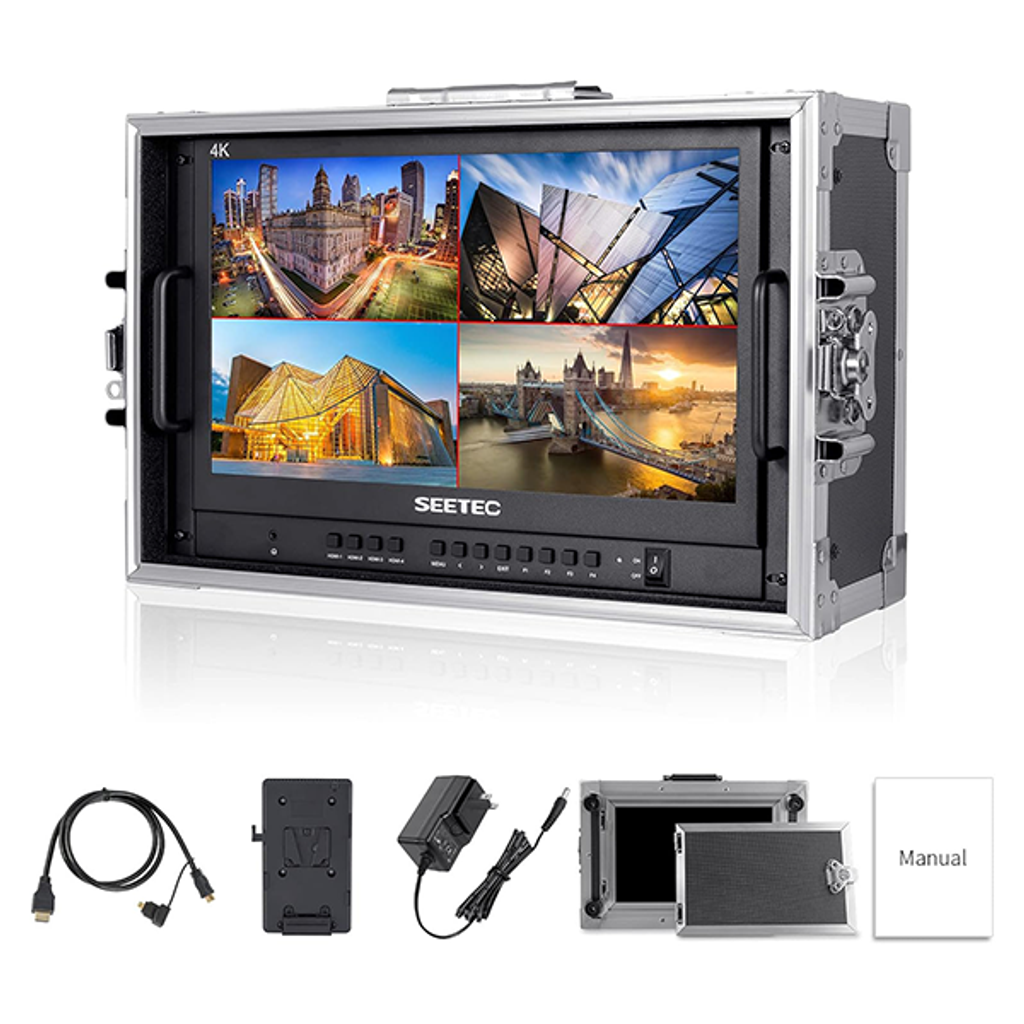

In The Box

FeelWorld 15.6" Multicamera Broadcast Director Monitor (Carry-On)
Power Adapter
V-Mount Battery Plate
Mini-HDMI Cable
SDI Cable

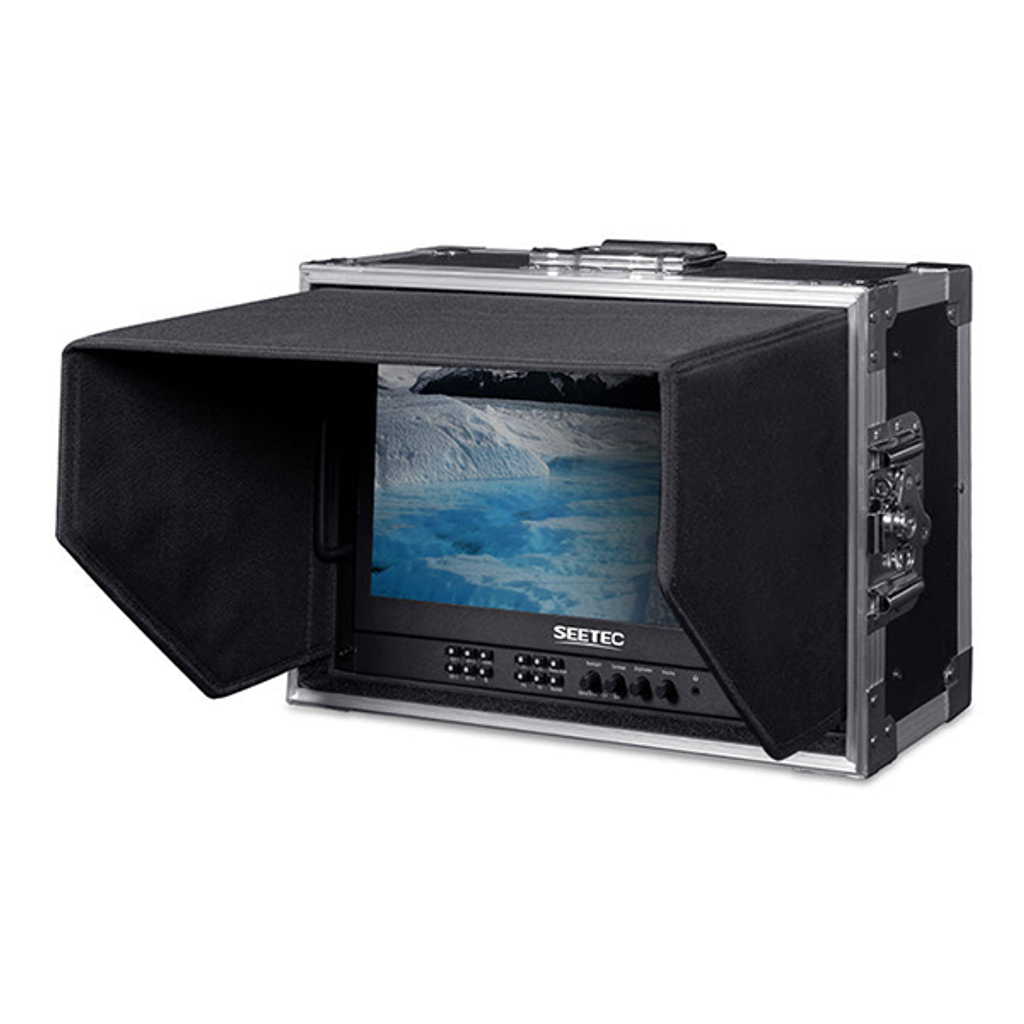

Sun Hood
Suitcase Enclosure
